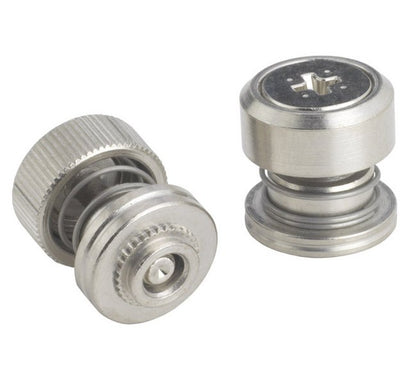

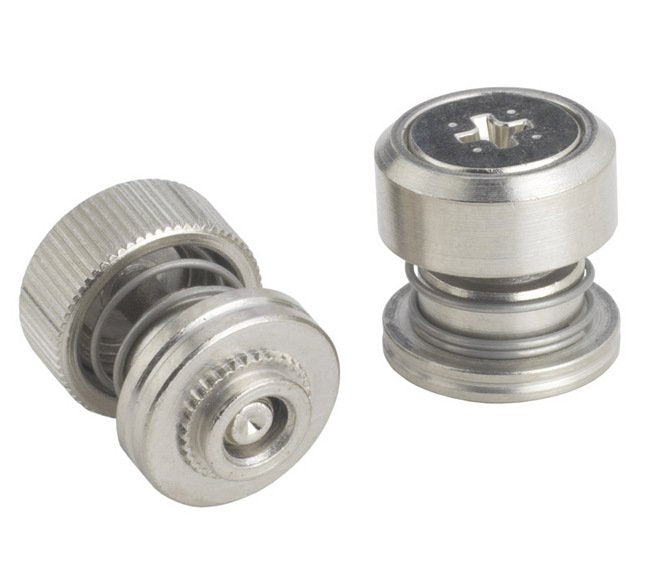

• PEM Captive Panel Screw-Low Profile Knob - Metric PF50/PF60 Series - Image 1
  • PEM Captive Panel Screw-Low Profile Knob - Metric PF50/PF60 Series - Image 2
1 2
Hi-Tech Fasteners, Inc. →

PEM Captive Panel Screw-Low Profile Knob - Metric PF50/PF60 Series

PEM Captive Panel Screw-Low Profile Knob - Metric PF50/PF60 Series

PEM-71110e

Enhance functionality with the PEM Captive Panel Screw-Low Profile Knob. Easy to use Phillips recess design for secure fastening on metal sheets. Crafted from durable carbon steel and stainless steel for reliability.

$12.99
$12.99
Sale

Initiate Order

PEM Captive Panel Screw-Low Profile Knob - Metric PF50/PF60 Series

PEM Captive Panel Screw-Low Profile Knob - Metric PF50/PF60 Series

$12.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw-Low Profile Knob - Metric PF50/PF60 Series

PEM Captive Panel Screw-Low Profile Knob - Metric PF50/PF60 Series

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PEM Captive Panel Screw with Low Profile Knob, Spring-loaded design, delivers exceptional functionality and aesthetic appeal. Featuring a Phillips recess for tool or finger operation, it offers ease of use and high performance. This smooth cap screw is meticulously crafted from carbon steel and stainless steel, meeting stringent industry standards for durability and reliability. Ideal for metal sheets with a thickness of 1mm or more, this screw ensures secure fastening in a variety of applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A Shank Max
0.97 mm
Specifications Cad Supplier
PennEngineering® (PEM®)

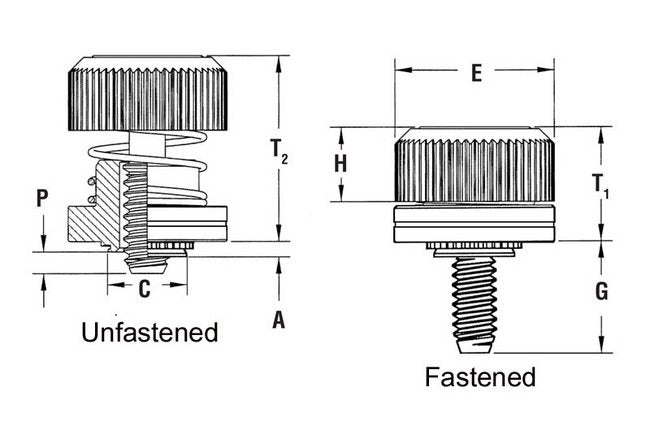

Specifications Cad View
Unfastened
Specifications C Max
7.98 mm
Specifications Driver Size
#2 Phillips
Specifications E 04 013
13.50 mm
Specifications Finish Knob
Bright nickel over copper flash per ASTM B689
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale)HB 107 or Less (Hardness Brinell)
Specifications G 064
5.84 mm
Specifications Hole Size In Sheet 008
8 mm
Specifications H 02
5.72 mm
Specifications Material Knob
Carbon Steel
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.40 mm
Specifications Min Sheet Thickness
1 mm
Specifications P 064
0 mm
Specifications Screw Length Code
0
Specifications T1 Max
8.64 mm
Specifications T2 Nom
13.46 mm
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Smooth Cap - PF61
