PEM Captive Panel Screw-Low Profile Knob PF31 Metric

Name: PEM Captive Panel Screw-Low Profile Knob PF31 Metric
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-0a4b19
Price: 14.99 USD
Availability: OutOfStock

SKU:PEM-0a4b19

Enhance functionality and aesthetics with the low-profile PEM Captive Panel Screw-Low Profile Knob PF31 Metric, designed for durability and convenience.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

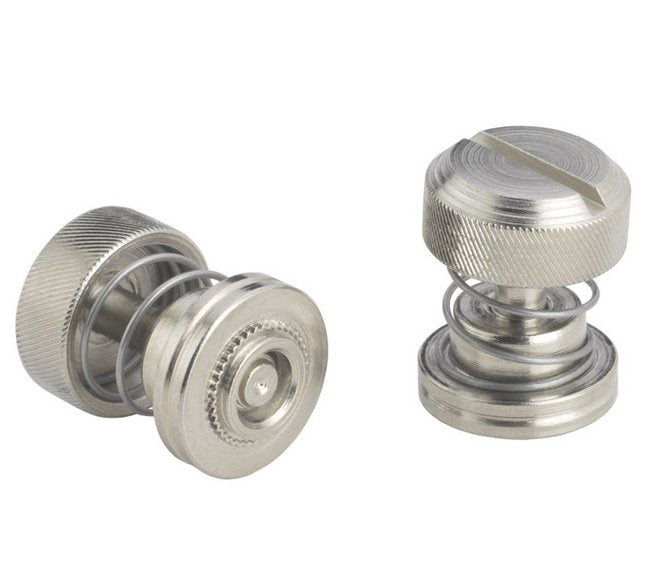

The PEM Captive Panel Screw-Low Profile Knob PF31 Metric is expertly designed to meet various functional and aesthetic demands. With a low-profile construction, it offers convenience with a large, slotted head for easy tool or finger operation. Crafted from high-quality materials including carbon steel and 300 series stainless steel, this screw ensures durability and reliability. The bright nickel finish over copper flash per ASTM B689 provides corrosion resistance, making it suitable for use in environments with sheet hardness up to HRB 60 or HB 107. Compliant with ANSI/ASME B1.13M thread specifications.

Product Specifications

Specifications A Shank Max

0.97 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

5.48 mm

Specifications E 025

10.31 mm

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 04

7.62 mm

Specifications Hole Size In Sheet 008

5.5 mm

Specifications H 013

5.13 mm

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

6.60 mm

Specifications Min Sheet Thickness

1 mm

Specifications Screw Length Code

Specifications T1 Max

8.26 mm

Specifications T2 Nom

15.11 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M3 x 0.5

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PF31
