PEM Captive Panel Screw-Low Profile Knob PF50/PF60 Series with smooth cap, designed for durability & functionality. Conforms to ASTM B689 standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

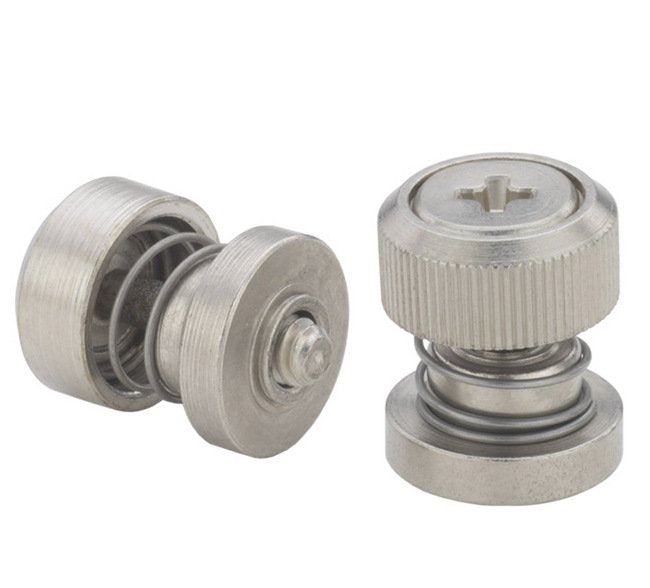

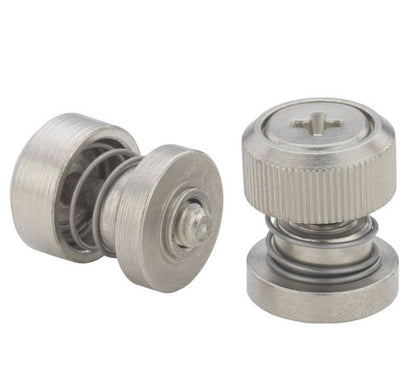

The PEM Captive Panel Screw-Low Profile Knob from the PF50/PF60 Series offers a low-profile design meeting functional and aesthetic needs. Featuring a smooth cap, this screw is designed for ease of operation with a large head and Phillips recess. Crafted from high-quality carbon steel and 300 series stainless steel spring, it ensures durability and longevity. With finishes conforming to ASTM B689 standards and meeting sheet hardness requirements, this screw is ideal for various applications in metal sheets and panels.

Product Specifications

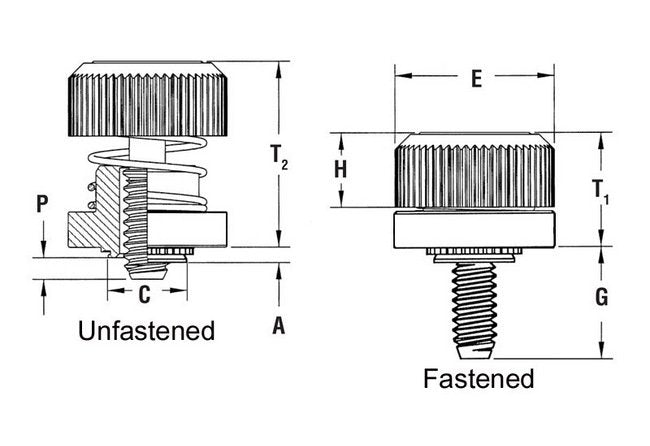

Specifications A Shank Max

.030 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.218 in

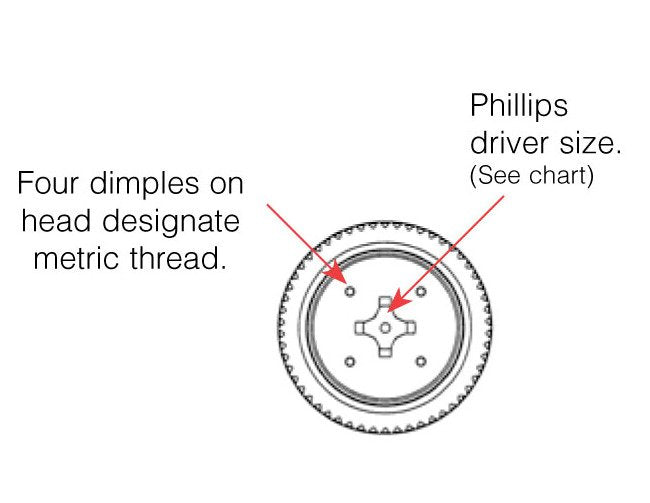

Specifications Driver Size

#2 Phillips

Specifications E 015 005

.438 in

Specifications Finish Knob

Bright nickel over copper flash per ASTM B689

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 025

.230 in

Specifications Hole Size In Sheet 0003 0000

.219 in

Specifications H 008

.207 in

Specifications Material Knob

Carbon Steel

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.28 in

Specifications Min Sheet Thickness

.030 in

Specifications Optional Finish

Knob â Black NitrideScrew â Black NitrideRetainer â Black Nitride

Specifications P 025

.000 in

Specifications Screw Length Code

Specifications T1 Max

.340 in

Specifications T2 Nom

.520 in

Specifications Thread Code

632

Specifications Thread Size

.138-32 (#6;-32)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

Smooth Cap - PF60
