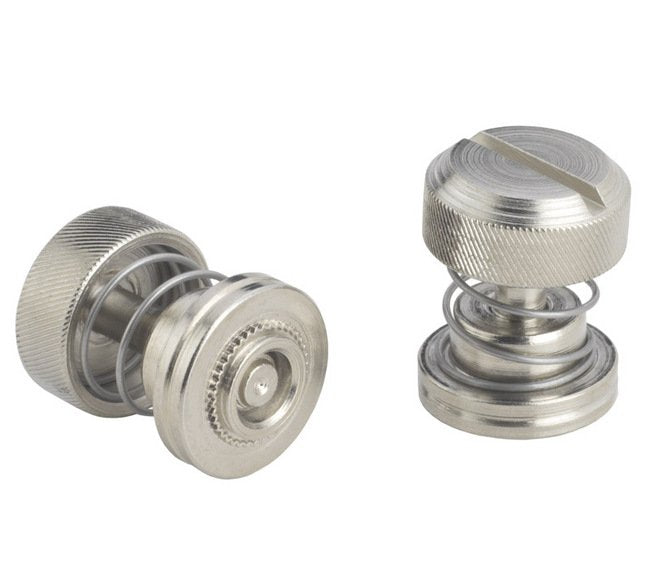

• PEM Captive Panel Screw-Low Profile Metric Knob - Image 1
  • PEM Captive Panel Screw-Low Profile Metric Knob - Image 2
1 2
Hi-Tech Fasteners, Inc. →

PEM Captive Panel Screw-Low Profile Metric Knob

PEM Captive Panel Screw-Low Profile Metric Knob

PEM-ea9f99

Enhance functionality and aesthetics with PEM's Low Profile Knob Captive Panel Screw in PF30, PF31, PF32 types. Compliant with ANSI/ASME B1.13M standards.

$24.99
$24.99
Sale

Initiate Order

PEM Captive Panel Screw-Low Profile Metric Knob

PEM Captive Panel Screw-Low Profile Metric Knob

$24.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw-Low Profile Metric Knob

PEM Captive Panel Screw-Low Profile Metric Knob

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PEM Captive Panel Screw-Low Profile Knob with Spring-loaded design in Types PF30, PF31, PF32 offers exceptional functionality and aesthetics. Featuring a low-profile construction, it meets various functional and cosmetic needs. The screw includes a convenient, large slotted head enabling easy operation using tools or fingers. With premium materials like Carbon Steel and 300 Series Stainless Steel, this screw ensures durability and reliable performance. Compliant with ANSI/ASME B1.13M standards, this screw is ideal for metal sheets with a thickness of 1mm and fits Hole Sizes up to 8mm.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A Shank Max
0.97 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.98 mm
Specifications E 025
13.46 mm
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale)HB 107 or Less (Hardness Brinell)
Specifications G 04
7.62 mm
Specifications Hole Size In Sheet 008
8 mm
Specifications H 013
5.59 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.38 mm
Specifications Min Sheet Thickness
1 mm
Specifications Screw Length Code
30
Specifications T1 Max
8.51 mm
Specifications T2 Nom
15.37 mm
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PF31
