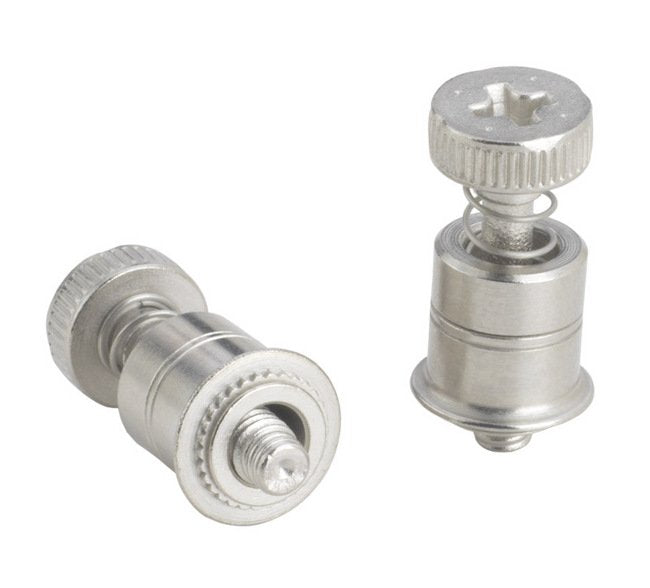

PEM Captive Panel Screw PF7M - M4 x 0.7
PEM Captive Panel Screw PF7M - M4 x 0.7
SKU:PEM-3a7871
PEM Captive Panel Screw PF7M - Self-Clinching, Flush Installation, High Pushout Resistance, ASME B1.13M Standards, Carbon Steel & Stainless Steel Materials
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PEM Captive Panel Screw PF7M - M4 x 0.7
$12.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw PF7M - M4 x 0.7
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw in Metric Type PF7M features a self-clinching mounting design for high pushout resistance. With a flush installation on the panel's back side and no special hole preparation required, this screw is ideal for various metal sheet applications. Crafted from durable carbon steel and stainless steel materials, this screw ensures reliable performance and longevity. Meeting ASME B1.13M standards, this screw is essential for secure fastening in industrial settings.
Product Specifications

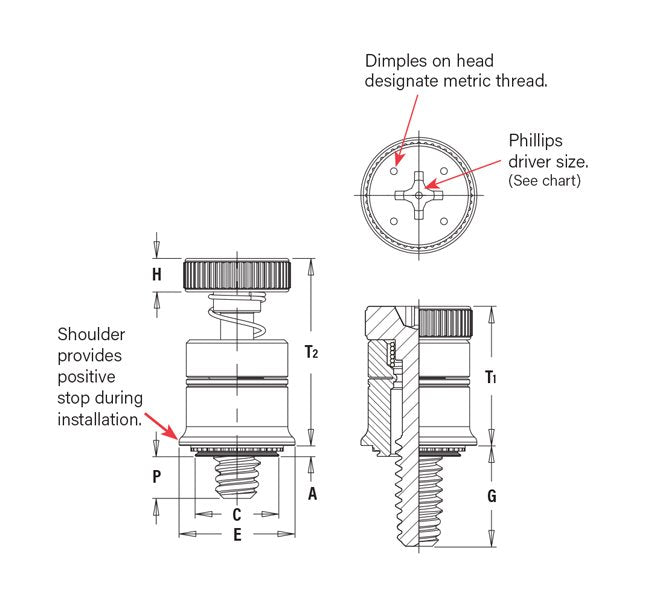

Specifications A Shank Max
0.92 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.9 mm
Specifications E 025
10.29 mm
Specifications Finish Retainer
Bright nickel over copper flash
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell âBâ Scale) / HB 107 or Less (Hardness Brinell)
Specifications G 064
7.62 mm
Specifications Hole Size In Sheet 008
7.92 mm
Specifications H 025
3.00 mm
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.38 mm
Specifications Min Sheet Thickness
0.92 mm
Specifications P 064
1.65 mm
Specifications Screw Length Code
1
Specifications T1 Nom
10.92 mm
Specifications T2 Nom
16.00 mm
Specifications Thread Code
M4
Specifications Thread Size
M4 x 0.7
Specifications Thread Specification
ASME B1.13M, 6g
Specifications Type
PF7M
