PEM Captive Panel Screw PF7M - Self-Clinching Metric

Name: PEM Captive Panel Screw PF7M - Self-Clinching Metric
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-4b576e
Price: 14.99 USD
Availability: OutOfStock

SKU:PEM-4b576e

Precision-engineered PEM Captive Panel Screw PF7M with M3 x 0.5 thread size, ideal for flush backside installation on metal sheets. ASME B1.13M compliant.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

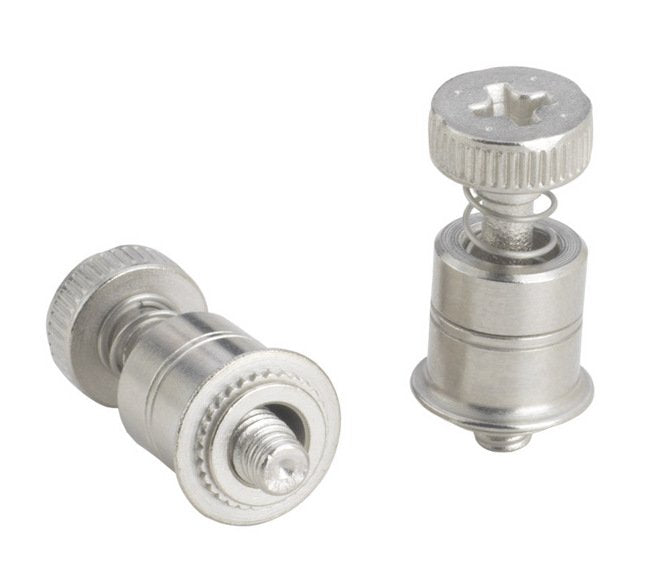

The PEM Captive Panel Screw PF7M is a precision-engineered fastening solution designed for high pushout resistance and secure installation on metal sheets. Featuring a thread size of M3 x 0.5 and constructed with heat-treated carbon steel screw and a 300 series stainless steel spring, this spring-loaded self-clinching screw ensures reliable performance. With a flush backside installation and no special hole preparation required, this screw is ideal for applications demanding efficiency and durability. Compliant with ASME B1.13M thread specifications and suitable for use in metal sheets with a hardness of HRB 60 or less, the PEM PF7M screw meets rigorous industry standards for quality and performance.

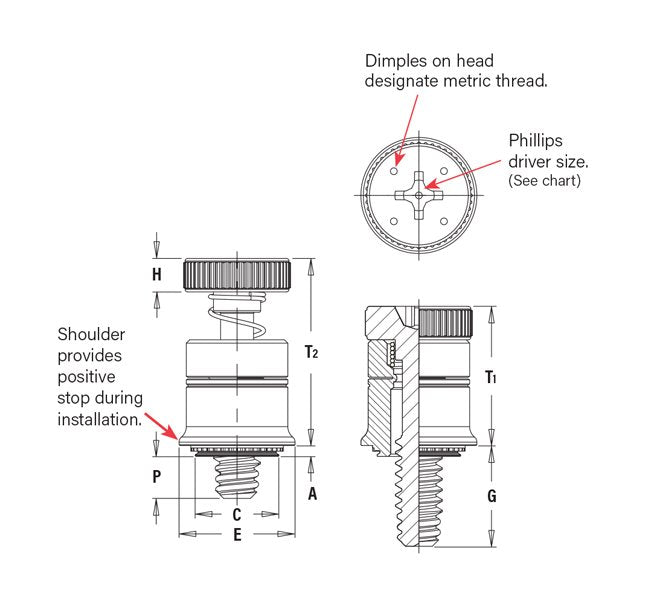

Product Specifications

Specifications A Shank Max

0.92 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

5.54 mm

Specifications E 025

7.87 mm

Specifications Finish Retainer

Bright nickel over copper flash

Specifications Finish Screw

Bright nickel over copper flash

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale) / HB 107 or Less (Hardness Brinell)

Specifications G 064

5.33 mm

Specifications Hole Size In Sheet 008

5.56 mm

Specifications H 025

2.5 mm

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

7.11 mm

Specifications Min Sheet Thickness

0.92 mm

Specifications P 064

0 mm

Specifications Screw Length Code

Specifications T1 Nom

9.65 mm

Specifications T2 Nom

13.97 mm

Specifications Thread Code

Specifications Thread Size

M3 x 0.5

Specifications Thread Specification

ASME B1.13M, 6g

Specifications Type

PF7M
