PEM Captive Panel Screw PF7MF - Spring-loaded Flare Mount
PEM Captive Panel Screw PF7MF - Spring-loaded Flare Mount
SKU:PEM-715a34
PEM Captive Panel Screw PF7MF - precision fit for secure installations without high force requirement.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
PEM Captive Panel Screw PF7MF - Spring-loaded Flare Mount
$15.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw PF7MF - Spring-loaded Flare Mount
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

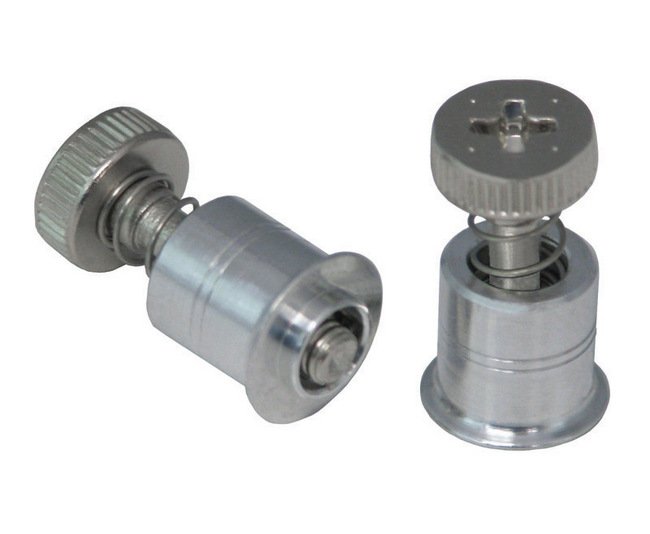

The PEM Captive Panel Screw PF7MF is designed for close centerline-to-edge applications without the need for high installation force. With a thread size of .164-32 (#8;-32) and ASME B1.1, 2A thread specification, this screw offers precise and secure fastening into any panel hardness. The screw head is spring-loaded and installs flush on the backside of the panel, ensuring a smooth and secure fit. Made from high-quality materials including heat-treated carbon steel and 300 series stainless steel, it provides durability and reliable performance for a wide range of industrial applications.
Product Specifications

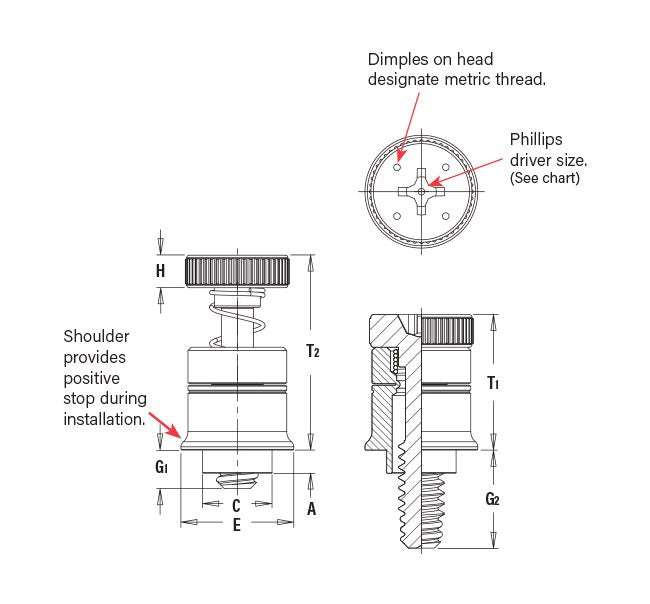

Specifications A Shank Max
.072 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.265 in
Specifications E 010
.405 in
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications G1 025
.040 in
Specifications G2 025
.240 in
Specifications Hole Size In Sheet 0005 0000
.266 in
Specifications H 010
.120 in
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.060 in
Specifications Screw Length Code
0
Specifications T1 Nom
.430 in
Specifications T2 Nom
.630 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7MF
