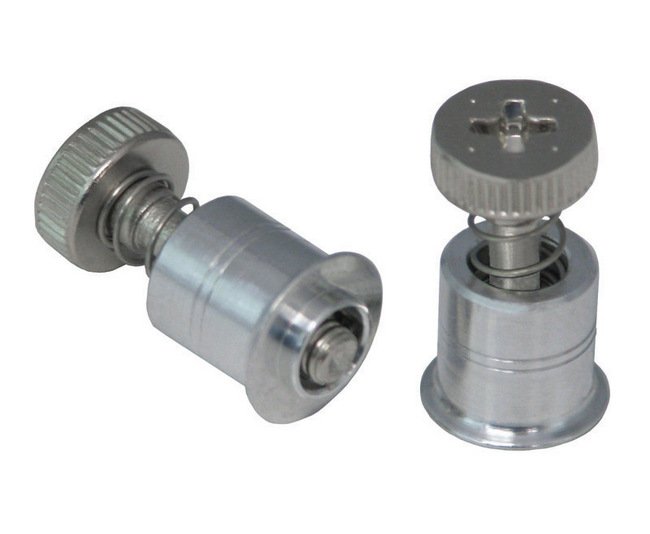

The PEM Captive Panel Screw with Spring-loaded Flare Mount PF7MF is a versatile solution suitable for close centerline-to-edge applications. With a thread size of .138-32 (#6-32) and a heat-treated carbon steel screw, it ensures secure installations into panels of varying hardness. The screw installs effortlessly, requiring minimal force, and sits flush on the backside of the panel, providing a sleek finish. Its aluminum retainer, stainless steel spring, and ASME B1.1, 2A thread specification ensure durability and reliability in demanding environments.

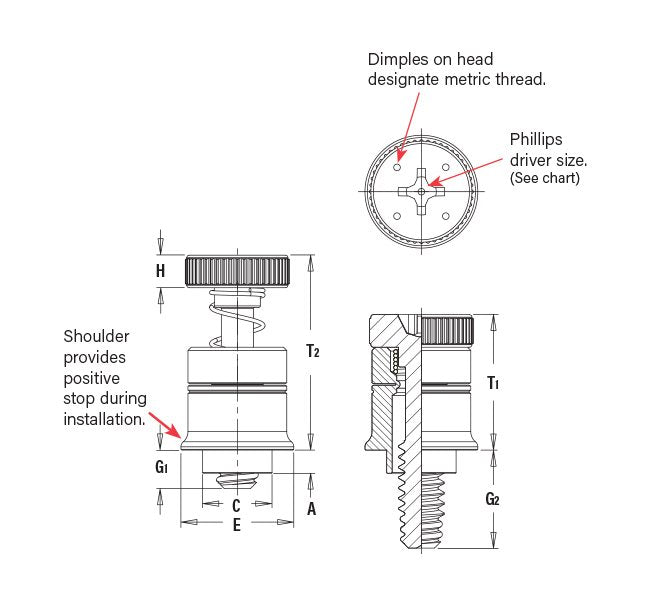

Product Specifications
Specifications A Shank Max
.072 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.212 in
Specifications E 010
.342 in
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications G1 025
.100 in
Specifications G2 025
.300 in
Specifications Hole Size In Sheet 0005 0000
.213 in
Specifications H 010
.100 in
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
.060 in
Specifications Screw Length Code
1
Specifications T1 Nom
.410 in
Specifications T2 Nom
.610 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ASME B1.1, 2A
Specifications Type
PF7MF
