PEM Captive Panel Screw-Screw Head PFHV Metric

Name: PEM Captive Panel Screw-Screw Head PFHV Metric
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-79c3ee
Price: 12.99 USD
Availability: OutOfStock

SKU:PEM-79c3ee

Versatile PEM Captive Panel Screw-Screw Head PFHV Metric for metal sheets and panels. Easy installation, durable design, ANSI/ASME B1.13M compliant.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

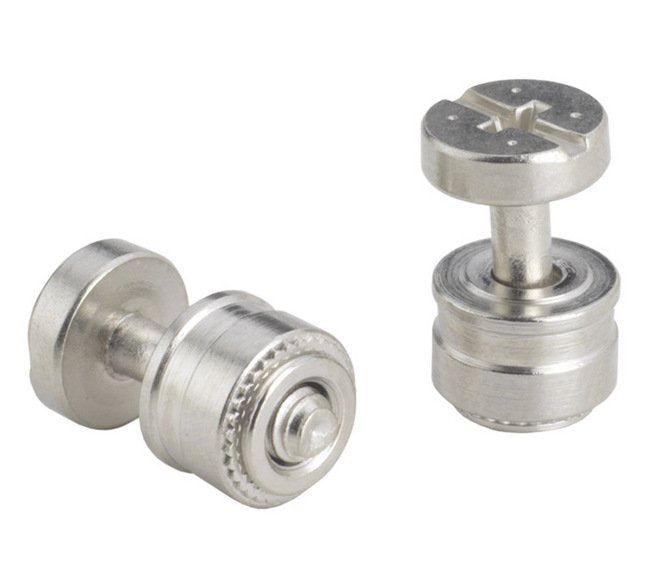

The PEM Captive Panel Screw-Screw Head PFHV Metric is a versatile fastener designed for metal sheets and panels. With a compact and low-profile design suitable for limited access areas, this screw offers easy installation and dependable fastening. Featuring a universal slot/Phillips recess standard, this screw provides flexibility in assembly. Made of heat-treated carbon steel with a bright nickel finish, it meets stringent durability and corrosion resistance requirements. Compliant with ANSI/ASME B1.13M thread specification and suitable for sheet hardness up to HRB 60, this screw is a reliable choice for various applications.

Product Specifications

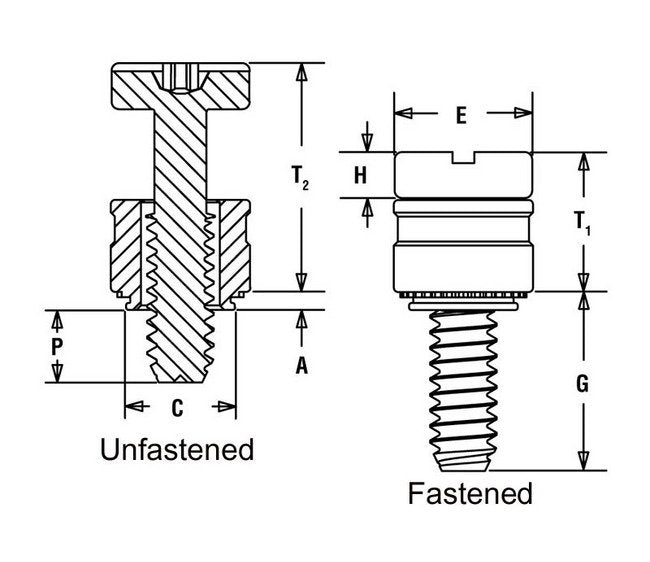

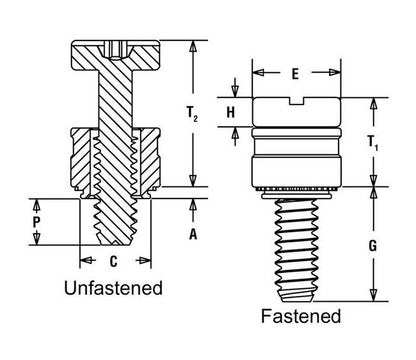

Specifications A Shank Max

0.92 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

6.38 mm

Specifications Driver Size

Slotted/#2; Phillips

Specifications E 025

7.85 mm

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 064

6.59 mm

Specifications Hole Size In Sheet 008

6.4 mm

Specifications H 013

2.79 mm

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

6.70 mm

Specifications Min Sheet Thickness

0.92 mm

Specifications P 064

0 mm

Specifications Screw Length Code

Specifications T1 Nom

8.50 mm

Specifications T2 Nom

14.10 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M4 x 0.7

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PFHV
