PEM Captive Panel Screw-Screw Head PFHV Unified

PEM Captive Panel Screw-Screw Head PFHV Unified

PEM-69153e

Cost-effective PEM Captive Panel Screw with Type PFHV design, compact size, and versatile slot/Phillips recess for efficient use in limited access areas.

$14.99
$14.99
Sale

Initiate Order

PEM Captive Panel Screw-Screw Head PFHV Unified

PEM Captive Panel Screw-Screw Head PFHV Unified

$14.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw-Screw Head PFHV Unified

PEM Captive Panel Screw-Screw Head PFHV Unified

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

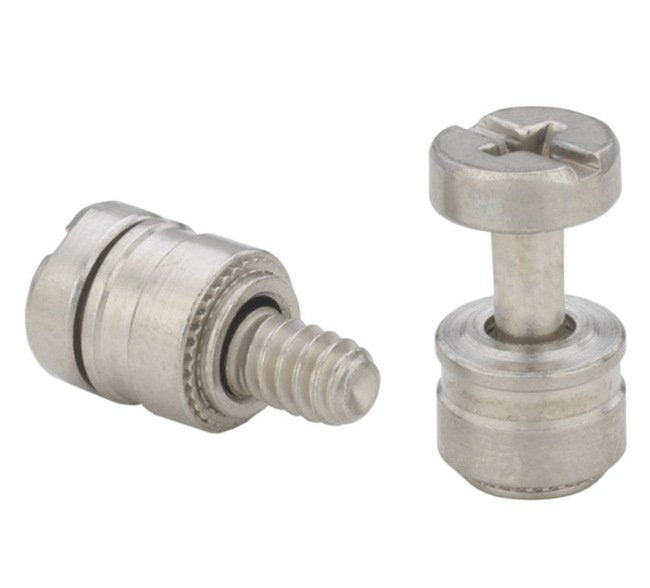

The PEM Captive Panel Screw with Screw Head and No Spring in Type PFHV offers a cost-effective solution with a small, compact design ideal for limited access areas. With two screw lengths and a universal slot/Phillips recess standard, this screw is versatile and efficient. Made from heat-treated carbon steel, with a bright nickel finish, this screw is durable and corrosion-resistant. Meeting ANSI B1.1, 2A thread specifications, and suitable for use in sheets of HRB 60 hardness or less, this screw ensures reliable performance in various applications.

Product Specifications

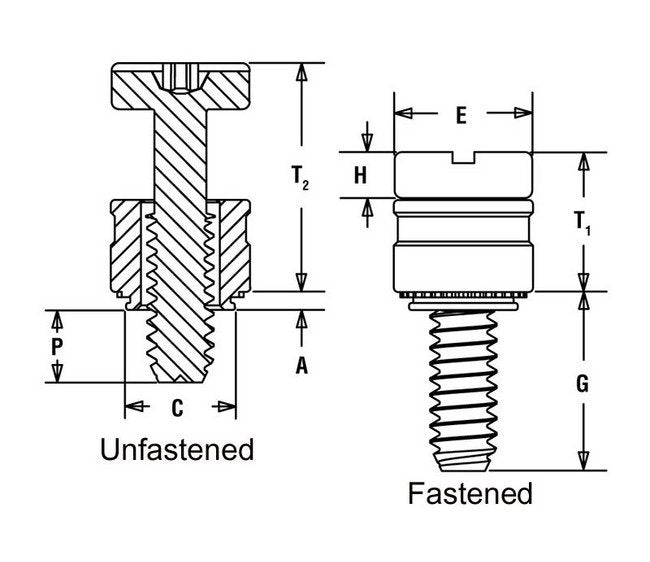

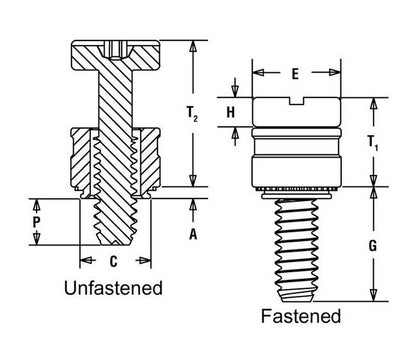

Specifications A Shank Max
.036 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.251 in
Specifications Driver Size
Slotted/#2; Phillips
Specifications E 010
.309 in
Specifications Finish Retainer
Bright Nickel over Copper Flash per ASTM B689
Specifications Finish Screw
Bright nickel over copper flash per ASTM B689
Specifications For Use In Sheet Hardness
HRB 60 or Less (Hardness Rockwell “B” Scale)HB 107 or Less (Hardness Brinell)
Specifications G 025
.371 in
Specifications Hole Size In Sheet 0003 0000
.252 in
Specifications H 005
.111 in
Specifications Material Retainer
Carbon Steel
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.260 in
Specifications Min Sheet Thickness
.036 in
Specifications P 025
.106 in
Specifications Screw Length Code
1
Specifications T1 Nom
.335 in
Specifications T2 Nom
.555 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFHV
