PEM Captive Panel Screw-Tool for Metal Sheets - SCB Type
PEM Captive Panel Screw-Tool for Metal Sheets - SCB Type
SKU:PEM-10b81e
Upgrade fastening in metal sheets with the PEM Captive Panel Screw-Tool - SCB Type. ANSI-compliant, heat-treated carbon steel with zinc plating for corrosion resistance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM Captive Panel Screw-Tool for Metal Sheets - SCB Type
$24.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw-Tool for Metal Sheets - SCB Type
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your metal sheet projects with the PEM Captive Panel Screw-Tool for Metal Sheets. This spinning clinch bolt, designed with no spring, features specifications meeting ANSI standards, heat-treated carbon steel construction, and zinc plating for corrosion resistance. With a #2 Phillips driver size, this screw ensures secure fastening in sheets up to 0.040 inches thick, offering reliable performance and easy installation.

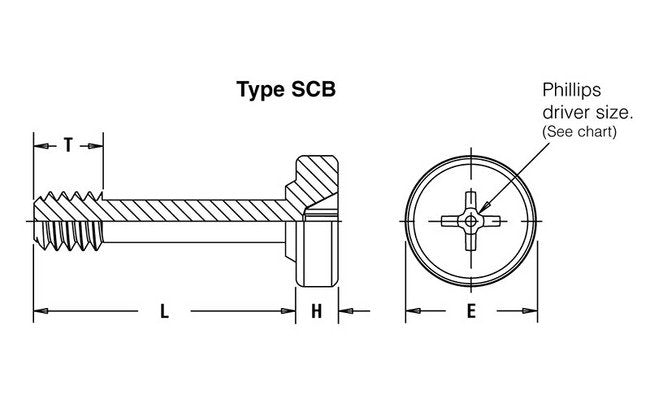

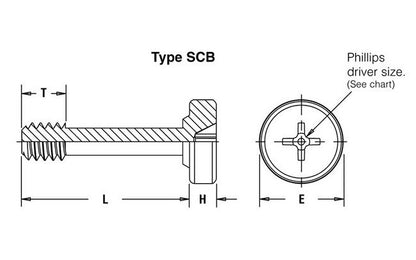

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#2 Phillips
Specifications E 010
.291 in
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 0003 0000
.138 in
Specifications H Nom
.080 in
Specifications L Length 015
.500 in
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.15 in
Specifications Min Sheet Thickness
.040 in
Specifications Nom Axial Float
.330 in
Specifications Screw Length Code
8
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Non-Jacking - SCB
Specifications T Nom
.130 in
