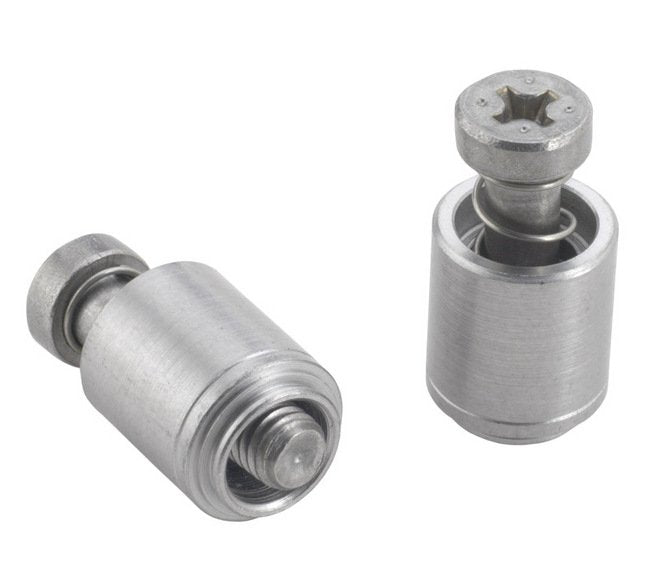

PEM Captive Panel Screw Tool - Metric, PFC4 Non Flush Spring-loaded
PEM Captive Panel Screw Tool - Metric, PFC4 Non Flush Spring-loaded
SKU:PEM-d8af0c
PEM Captive Panel Screw Tool - Secure, concealed head design for stainless steel installations. Versatile and compliant with industry standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Tool - Metric, PFC4 Non Flush Spring-loaded
$14.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Tool - Metric, PFC4 Non Flush Spring-loaded
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw Tool is designed for secure installations in stainless steel sheets with hardness up to HRB 88. Featuring a fully concealed head for exclusive tool access, this UL-approved tool ensures versatile use with assorted screw lengths. With precise dimensions and high-quality stainless steel materials, it meets rigorous industry standards, making it a reliable choice for a wide range of applications.
Product Specifications

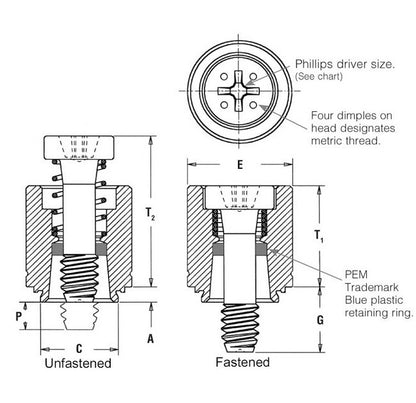

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.9 mm
Specifications Driver Size
#2 Phillips
Specifications E 025
10.31 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 04
14.30 mm
Specifications Hole Size In Sheet 008
7.92 mm
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
7.87 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
6.40 mm
Specifications Screw Length Code
94
Specifications T1 Max
12.19 mm
Specifications T2 Nom
17.91 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC4
