The PEM Captive Panel Screw-Tool is a high-quality fastening solution specifically designed for metal sheets and panels. With a thread size of M4 x 0.7 and made from heat-treated carbon steel with a zinc plated finish per ASTM B633, this spinning clinch bolt offers reliable performance and durability. It features a jacking type design, suitable for use in sheets with a hardness of HRB 80 or less. With precise specifications meeting ANSI/ASME B1.13M standards, this tool ensures secure fastening without the need for a spring, making it ideal for various industrial applications.

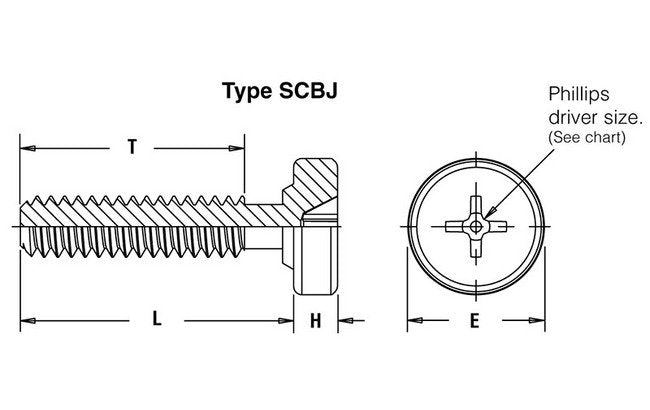

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#2 Phillips
Specifications E 025
8.28 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
4 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
6 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
5.00 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Screw Length Code
6
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Jacking - SCBJ
Specifications T Nom
3.70 mm
