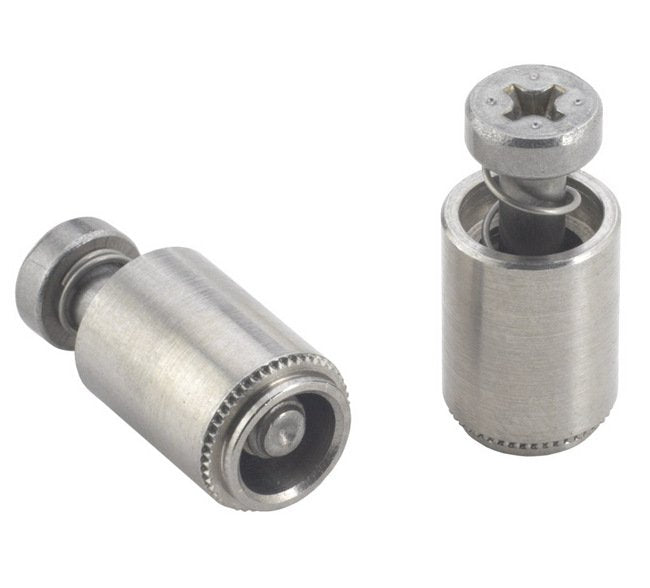

PEM Captive Panel Screw Tool - Metric Type PFC2P

PEM Captive Panel Screw Tool - Metric Type PFC2P

PEM-3811ab

UL approved PEM Captive Panel Screw Tool for secure and efficient fastening in metal sheets. Various screw lengths available for versatile applications.

$29.99
$29.99
Sale

Initiate Order

PEM Captive Panel Screw Tool - Metric Type PFC2P

PEM Captive Panel Screw Tool - Metric Type PFC2P

$29.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw Tool - Metric Type PFC2P

PEM Captive Panel Screw Tool - Metric Type PFC2P

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PEM Captive Panel Screw Tool in Metric Type PFC2P features a fully concealed head for exclusive tool access, ensuring security and ease of use. With UL approval, this screw tool offers various screw lengths suitable for a wide range of applications. Constructed with high-quality stainless steel materials and finishes, this screw tool guarantees durability and reliability in metal sheet and panel fastening.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

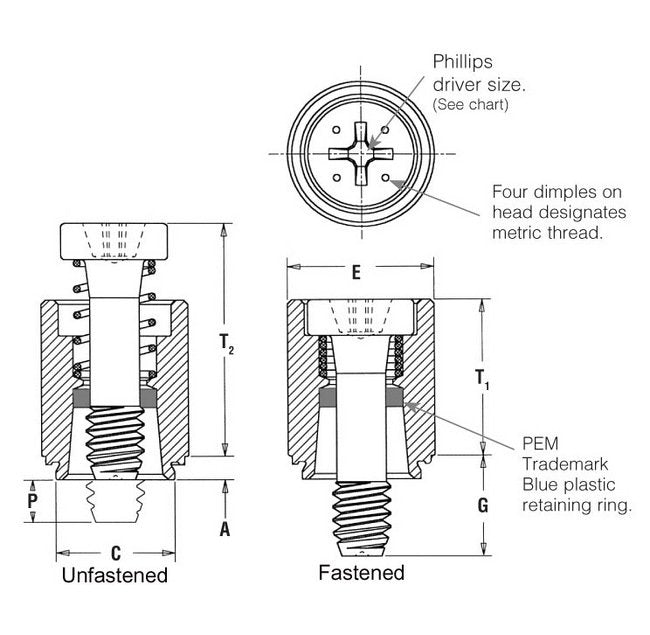

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
10.47 mm
Specifications Driver Size
#3 Phillips
Specifications E 025
11.89 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 04
15.90 mm
Specifications Hole Size In Sheet 008
10.49 mm
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
9.65 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications Optional Finish
Retainer – BN – Black NitrideScrew – BN – Black nitride
Specifications P 064
6.40 mm
Specifications Screw Length Code
4
Specifications T1 Max
15.75 mm
Specifications T2 Nom
22.99 mm
Specifications Thread Code
M6
Specifications Thread Size X Pitch
M6 x 1
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC2P
