PEM Captive Panel Screw Tool - Metric Type SCBJ
PEM Captive Panel Screw Tool - Metric Type SCBJ
SKU:PEM-2e2a9b
PEM Captive Panel Screw Tool for secure and efficient fastening on metal sheets. M4 x 0.7 thread size, SCBJ type, heat-treated carbon steel, ASTM B633 finish.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Tool - Metric Type SCBJ
$24.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Tool - Metric Type SCBJ
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw Tool offers reliable fastening with its M4 x 0.7 thread size, Non-Jacking SCBJ type, and heat-treated carbon steel construction. Ideal for metal sheets of 1.02mm thickness, it features a precise 4mm hole size and ANSI/ASME thread specification. This spinning clinch bolt ensures secure assembly with a finish compliant with ASTM B633 standards.

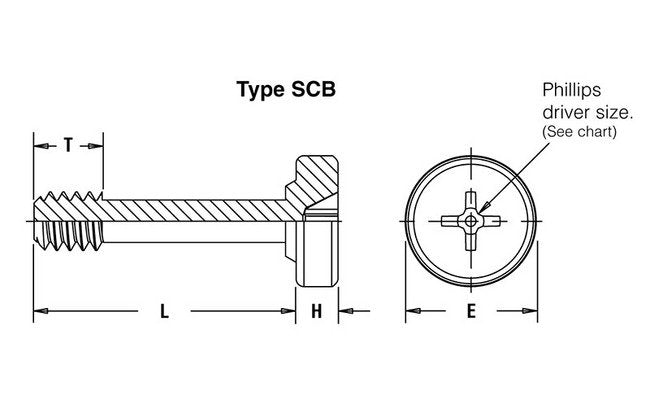

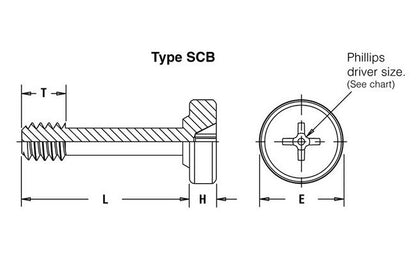

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#2 Phillips
Specifications E 025
8.28 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
4 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
12 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
5.00 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Nom Axial Float
7.67 mm
Specifications Screw Length Code
12
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Non-Jacking - SCB
Specifications T Nom
3.30 mm
