PEM Captive Panel Screw Tool - Non Flush, Spring-loaded
PEM Captive Panel Screw Tool - Non Flush, Spring-loaded
SKU:PEM-078e07
PEM Captive Panel Screw Tool for secure and precise non-flush attachments on metal sheets. Type PFC2P, spring-loaded design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Tool - Non Flush, Spring-loaded
$29.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Tool - Non Flush, Spring-loaded
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw Tool is designed for tool-only access, featuring a fully concealed head for secure fastening. This spring-loaded screw tool, type PFC2P, is meticulously crafted from high-quality 300 and 400 series stainless steel materials, ensuring durability and reliability. With precise specifications meeting ANSI standards, including thread size .190-32 and driver size #2 Phillips, this tool guarantees optimal performance and compatibility with metal sheets of varying thickness. Suitable for applications requiring a non-flush, spring-loaded design, this tool offers efficient installation and maintenance, making it an essential component for industries demanding precision and quality.

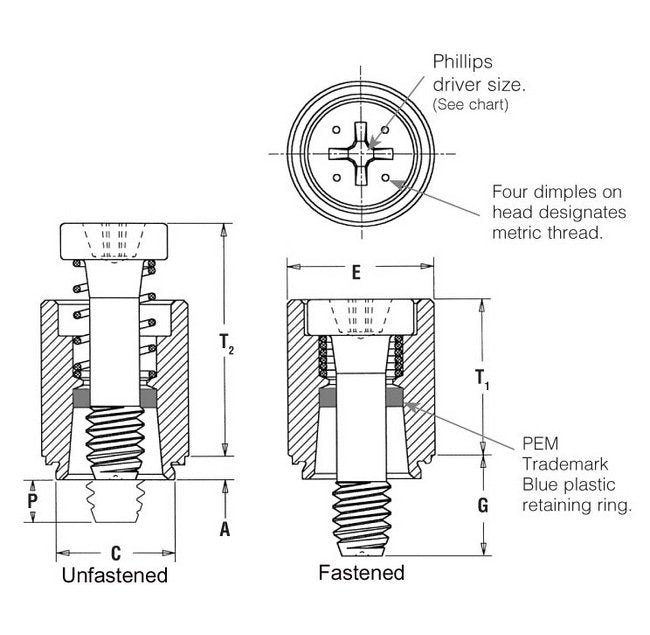

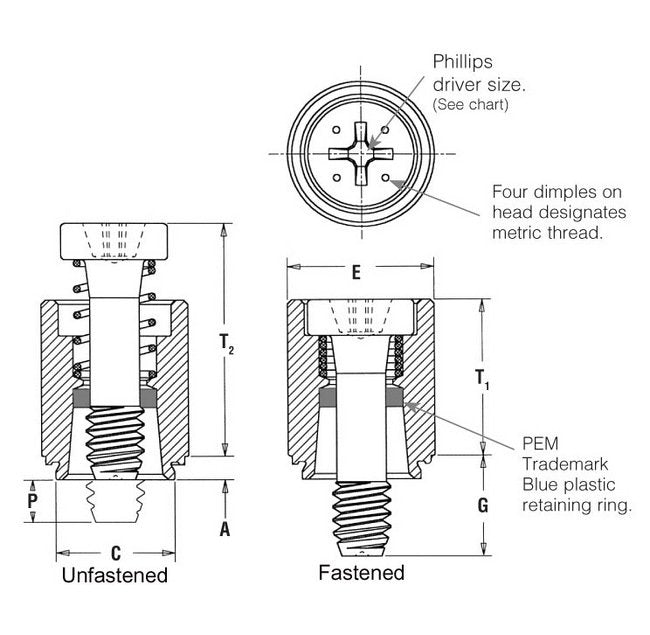

Product Specifications
Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.343 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.406 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.437 in
Specifications Hole Size In Sheet 0003 0000
.344 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.34 in
Specifications Min Sheet Thickness
.060 in
Specifications Optional Finish
Retainer â BN â Black NitrideScrew â BN â Black nitride
Specifications P 025
.125 in
Specifications Screw Length Code
72
Specifications T1 Max
.490 in
Specifications T2 Nom
.705 in
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2P
