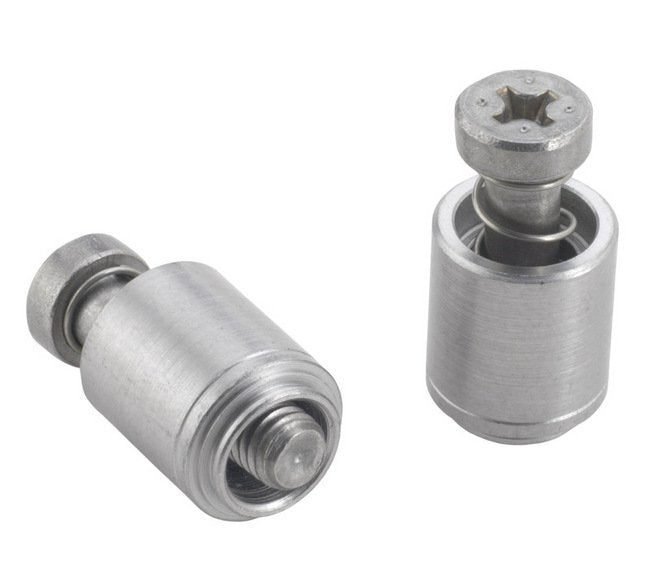

PEM Captive Panel Screw-Tool, Non-Flush, Spring-Loaded PFC4 - Metric
PEM Captive Panel Screw-Tool, Non-Flush, Spring-Loaded PFC4 - Metric
SKU:PEM-a8ab2c
Durable PEM Captive Panel Screw-Tool for secure and concealed fastening in stainless steel sheets, UL approved and versatile for varied applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Captive Panel Screw-Tool, Non-Flush, Spring-Loaded PFC4 - Metric
$29.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw-Tool, Non-Flush, Spring-Loaded PFC4 - Metric
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw-Tool combines precision and durability to securely install into stainless steel sheets up to HRB 88. Featuring a fully concealed-head design for tool-only access, this UL approved screw ensures quick and reliable fastening. With 400 Series Stainless Steel components and ANSI/ASME B1.13M thread specifications, it offers exceptional strength and corrosion resistance. The spring-loaded mechanism and diverse screw lengths make it versatile for various applications, meeting the stringent standards of industrial procurement.
Product Specifications

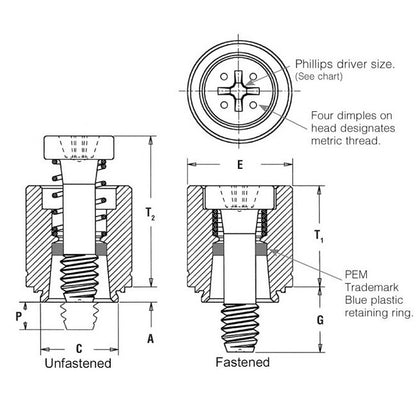

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
8.72 mm
Specifications Driver Size
#2 Phillips
Specifications E 025
11.1 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 04
11.10 mm
Specifications Hole Size In Sheet 008
8.74 mm
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
8.63 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
3.20 mm
Specifications Screw Length Code
72
Specifications T1 Max
12.45 mm
Specifications T2 Nom
17.91 mm
Specifications Thread Code
M5
Specifications Thread Size X Pitch
M5 x 0.8
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC4
