PEM Captive Panel Screw - Tool Only, Non Flush, Spring-loaded PFC4 - Unified
PEM Captive Panel Screw - Tool Only, Non Flush, Spring-loaded PFC4 - Unified
SKU:PEM-58194a
UL approved Captive Panel Screw-Tool with solid stainless steel construction for secure, easy installation in metal sheets. Various lengths available.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PEM Captive Panel Screw - Tool Only, Non Flush, Spring-loaded PFC4 - Unified
$12.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw - Tool Only, Non Flush, Spring-loaded PFC4 - Unified
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

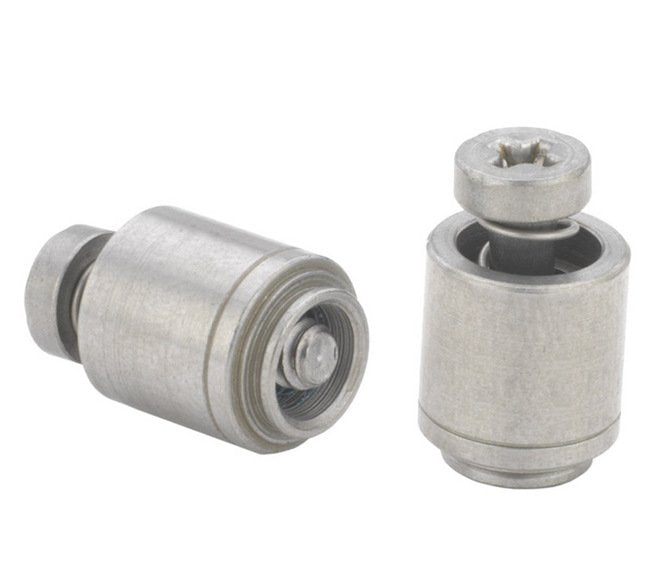

The PEM Captive Panel Screw-Tool only, Non Flush, Spring-loaded PFC4 is engineered for easy installation into stainless steel sheets with HRB 88 or less. Featuring a fully concealed head for exclusive tool access, this UL approved screw comes in assorted lengths to accommodate various applications. With precise specifications including a #2 Phillips driver size and materials like 400 series stainless steel and 300 series stainless steel spring, this screw ensures durability and secure fastening. Perfect for metal sheets and panels, this tool meets stringent procurement standards and offers reliable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

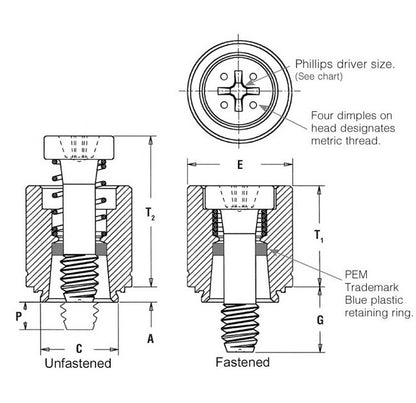

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.343 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.437 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 016
.437 in
Specifications Hole Size In Sheet 0003 0000
.344 in
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.34 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.125 in
Specifications Screw Length Code
72
Specifications T1 Max
.490 in
Specifications T2 Nom
.705 in
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC4
