PEM Captive Panel Screw Tool-Only SCBJ Metric Type SCBJ
PEM Captive Panel Screw Tool-Only SCBJ Metric Type SCBJ
SKU:PEM-ad4049
Premium PEM Captive Panel Screw Tool for precise and durable fastening on metal sheets. ANSI/ASME compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Tool-Only SCBJ Metric Type SCBJ
$14.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Tool-Only SCBJ Metric Type SCBJ
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

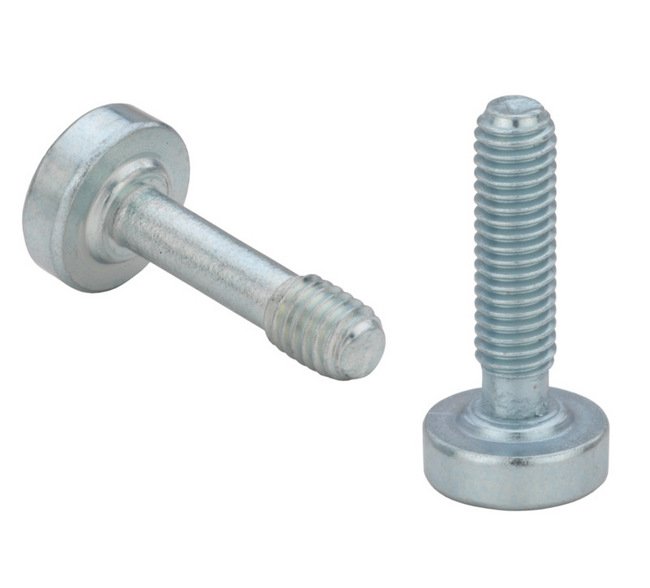

The PEM Captive Panel Screw-Tool Only SCBJ Metric Type SCBJ is a premium fastening solution designed for metal sheets and panels. Made of heat-treated carbon steel with a zinc plated finish, this screw ensures durability and corrosion resistance. With specifications meeting ANSI/ASME standards and designed for use in sheets with hardness Rockwell HRB 80 or less, this tool offers precision fastening and reliability for a wide range of applications.

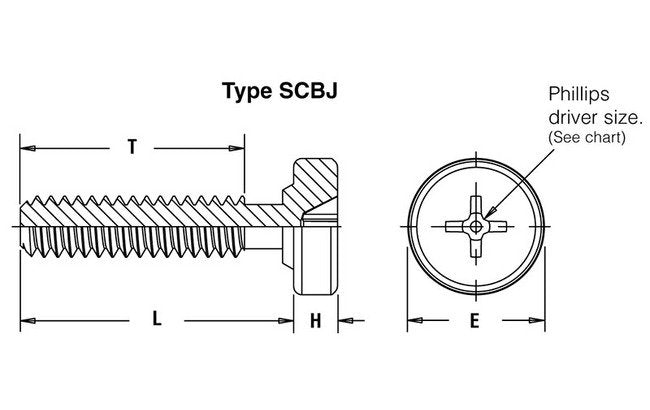

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#1 Phillips
Specifications E 025
6.60 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
3 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
10 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
3.3 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Screw Length Code
10
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Jacking - SCBJ
Specifications T Nom
7.70 mm
