PEM Captive Panel Screw-Tool PFC2P
PEM Captive Panel Screw-Tool PFC2P
SKU:PEM-8151b4
UL approved Captive Panel Screw-Tool providing secure fastening with concealed-head design. Various screw lengths available.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM Captive Panel Screw-Tool PFC2P
$24.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw-Tool PFC2P
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw-Tool PFC2P provides secure fastening with fully concealed-head design for tool-only access. UL approved and available in assorted screw lengths, it ensures reliable performance and ease of use. Crafted from 300 Series Stainless Steel for the retainer, 400 Series Stainless Steel for the screw, and 300 Series Stainless Steel for the spring, this tool meets high industry standards. Ideal for sheet thicknesses of up to 0.060 inches, with a range of specifications meeting various application needs.
Product Specifications

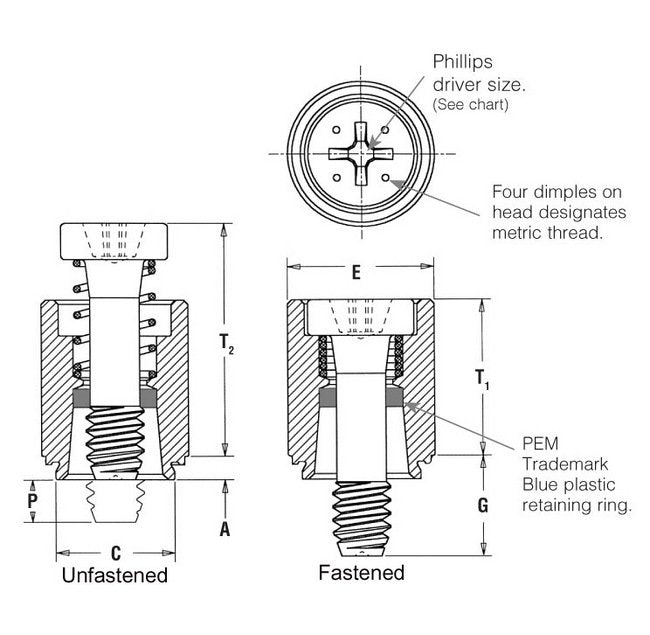

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.343 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.406 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.312 in
Specifications Hole Size In Sheet 0003 0000
.344 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.34 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.000 in
Specifications Screw Length Code
50
Specifications T1 Max
.490 in
Specifications T2 Nom
.705 in
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2P
