PEM Captive Panel Screw-Tool PFC2P

Name: PEM Captive Panel Screw-Tool PFC2P
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-60691a
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-60691a

Secure and reliable PEM Captive Panel Screw-Tool PFC2P for concealed access. UL approved, ideal for diverse applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PEM Captive Panel Screw-Tool PFC2P provides a secure, tool-only access point with its fully concealed head. Designed for easy installation, it features a #10-32 thread size and is crafted from high-quality 300 and 400 series stainless steel. This spring-loaded screw ensures a reliable hold and is UL approved, making it suitable for various applications while meeting industry standards for strength and durability.

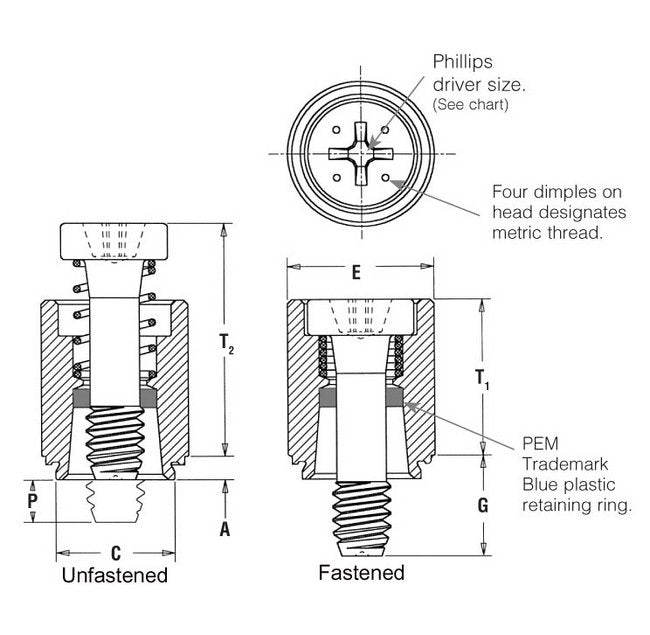

Product Specifications

Specifications A Shank Max

.060 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

.343 in

Specifications Driver Size

#2 Phillips

Specifications E 010

.406 in

Specifications Finish Retainer

Passivated and/or tested per ASTM A380

Specifications Finish Screw

Passivated and/or tested per ASTM A380

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications G 016

.562 in

Specifications Hole Size In Sheet 0003 0000

.344 in

Specifications Material Retainer

300 Series Stainless Steel

Specifications Material Screw

400 Series Stainless Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.34 in

Specifications Min Sheet Thickness

.060 in

Specifications Optional Finish

Retainer â BN â Black NitrideScrew â BN â Black nitride

Specifications P 025

.250 in

Specifications Screw Length Code

Specifications T1 Max

.490 in

Specifications T2 Nom

.705 in

Specifications Thread Code

032

Specifications Thread Size

.190-32 (#10;-32)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

PFC2P
