PEM Captive Panel Screw-Tool - PFC2P Metric

PEM Captive Panel Screw-Tool - PFC2P Metric

PEM-ca9540

Secure and durable PEM Captive Panel Screw-Tool PFC2P Metric - UL approved, versatile for various applications, high-quality stainless steel construction.

$24.99
$24.99
Sale

Initiate Order

PEM Captive Panel Screw-Tool - PFC2P Metric

PEM Captive Panel Screw-Tool - PFC2P Metric

$24.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw-Tool - PFC2P Metric

PEM Captive Panel Screw-Tool - PFC2P Metric

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

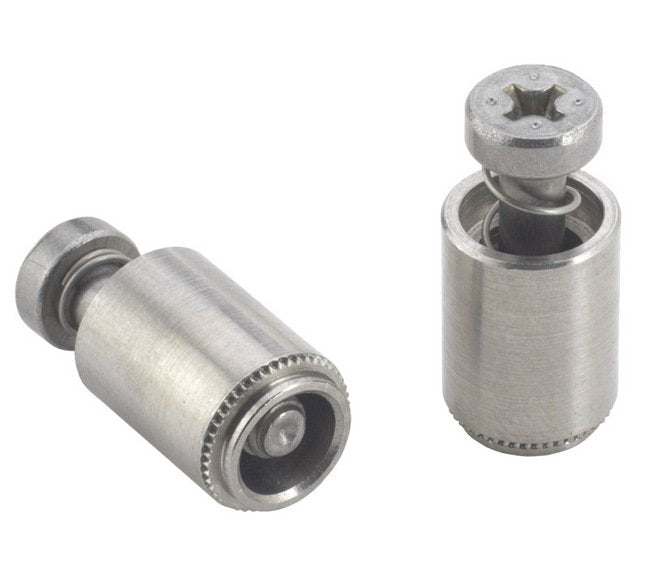

The PEM Captive Panel Screw-Tool is designed for secure and tool-only access, featuring a fully concealed head. This spring-loaded screw is UL approved and offers assorted lengths suitable for a wide range of applications. Made with precision from high-quality stainless steel, this screw ensures durability and reliability in fastening metal sheets and panels. The PFC2P Metric Type meets stringent industry standards for quality and performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

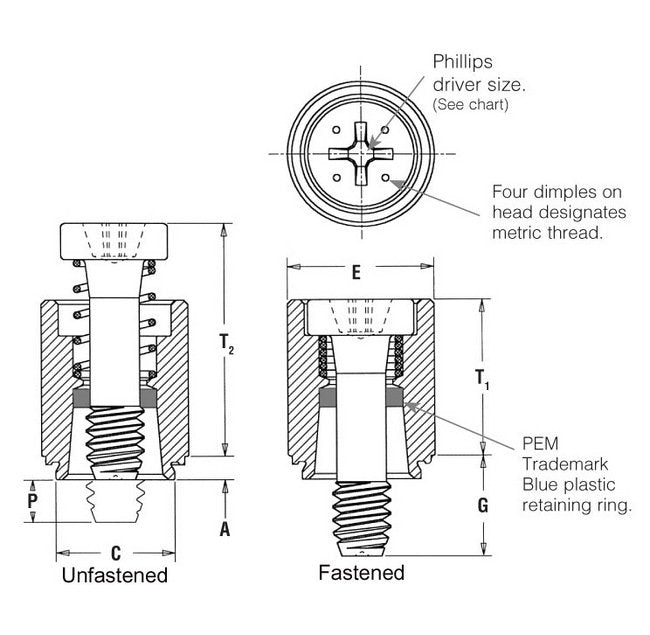

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
10.47 mm
Specifications Driver Size
#3 Phillips
Specifications E 025
11.89 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 04
15.90 mm
Specifications Hole Size In Sheet 008
10.49 mm
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
9.65 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
6.40 mm
Specifications Screw Length Code
4
Specifications T1 Max
15.75 mm
Specifications T2 Nom
22.99 mm
Specifications Thread Code
M6
Specifications Thread Size X Pitch
M6 x 1
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC2P
