The PEM Captive Panel Screw-Tool PFC2P Non-Flush is designed with fully concealed-head for secure tool-only access. It features UL approval and assorted screw lengths to accommodate various applications. With a thread size of .112-40 (#4;-40) and materials like 300 series stainless steel for the retainer, 400 series stainless steel for the screw, and 300 series stainless steel for the spring, this tool ensures durability and reliability. The finish is passivated and/or tested per ASTM A380 for enhanced corrosion resistance. Ideal for use in metal sheets with sheet hardness up to HRB 70 or HB 125, this tool guarantees precision and efficiency.
Product Specifications

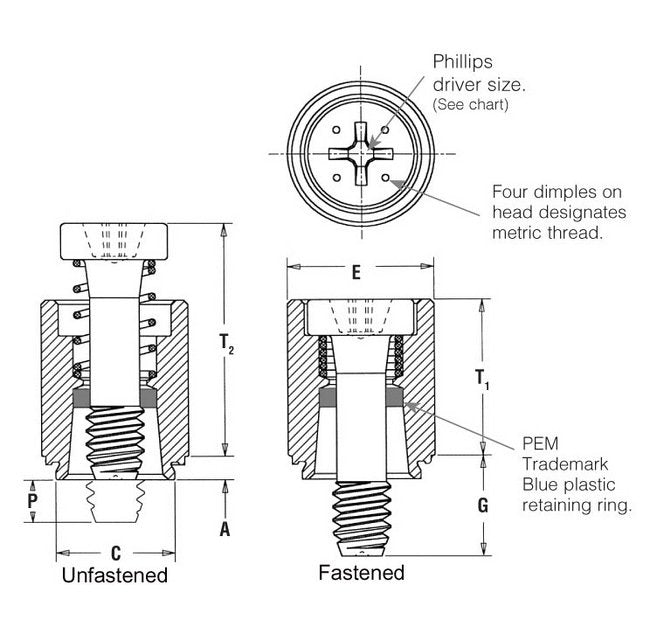

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.264 in
Specifications Driver Size
#1 Phillips
Specifications E 010
.312 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.375 in
Specifications Hole Size In Sheet 0003 0000
.265 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.250 in
Specifications Min Sheet Thickness
.060 in
Specifications Optional Finish
Retainer â BN â Black NitrideScrew â BN â Black nitride
Specifications P 025
.125 in
Specifications Screw Length Code
62
Specifications T1 Max
.370 in
Specifications T2 Nom
.540 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2P
