PEM Captive Panel Screw-Tool PFC2P, Non Flush Spring-loaded
PEM Captive Panel Screw-Tool PFC2P, Non Flush Spring-loaded
SKU:PEM-0ad2ef
UL approved captive panel screw tool with spring-loaded design for secure metal sheet fastening.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM Captive Panel Screw-Tool PFC2P, Non Flush Spring-loaded
$24.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw-Tool PFC2P, Non Flush Spring-loaded
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw-Tool PFC2P is designed for fully concealed-head tool-only access, offering UL approval and various screw lengths for versatile applications. With a thread size of .250-20 (1/4-20) and made of 300 and 400 series stainless steel components, this screw ensures durability and reliability. The spring-loaded design and precise specifications make it ideal for securely fastening metal sheets and panels.
Product Specifications

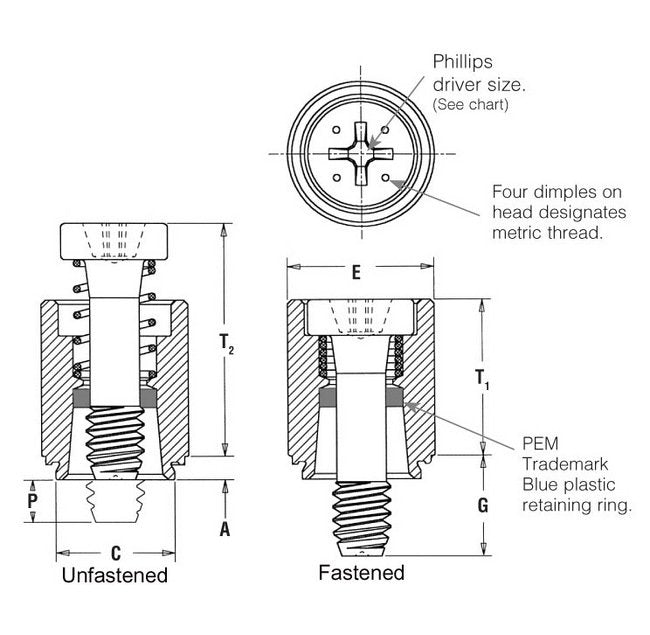

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.412 in
Specifications Driver Size
#3 Phillips
Specifications E 010
.468 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.375 in
Specifications Hole Size In Sheet 0003 0000
.413 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.38 in
Specifications Min Sheet Thickness
.060 in
Specifications Optional Finish
Retainer â BN â Black NitrideScrew â BN â Black nitride
Specifications P 025
.000 in
Specifications Screw Length Code
60
Specifications T1 Max
.620 in
Specifications T2 Nom
.905 in
Specifications Thread Code
0420
Specifications Thread Size
.250-20 (1/4-20)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2P
