The PEM Captive Panel Screw-Tool PFC2P is designed with a fully concealed head for secure tool-only access, ensuring UL approval for safety. This spring-loaded screw offers versatile application with a .250-20 thread size and various screw lengths, suitable for sheet thicknesses of .060 inches and hole sizes of .413 inches. Made with high-quality stainless steel materials and passivated finish, it guarantees durability and corrosion resistance. The #3 Phillips driver size and precise dimensions adhere to ANSI B1.1 standards, providing a reliable solution for fastening metal sheets and panels.

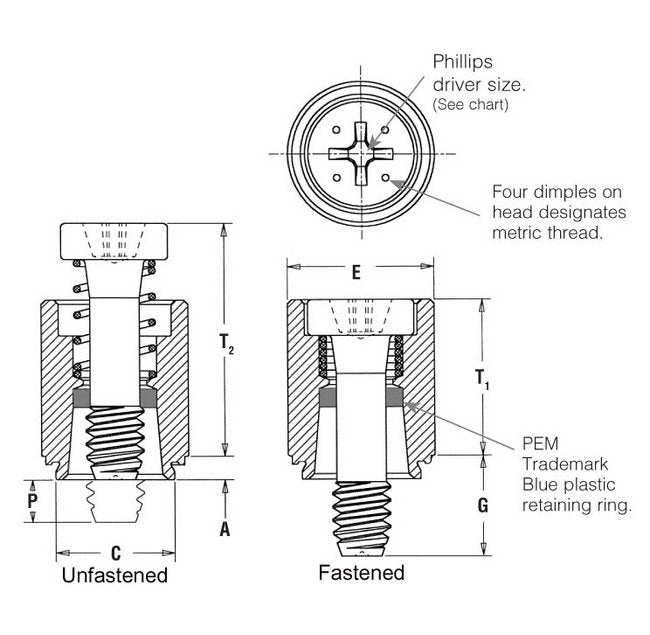

Product Specifications
Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.412 in
Specifications Driver Size
#3 Phillips
Specifications E 010
.468 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.500 in
Specifications Hole Size In Sheet 0003 0000
.413 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.38 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.125 in
Specifications Screw Length Code
82
Specifications T1 Max
.620 in
Specifications T2 Nom
.905 in
Specifications Thread Code
0420
Specifications Thread Size
.250-20 (1/4-20)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2P
