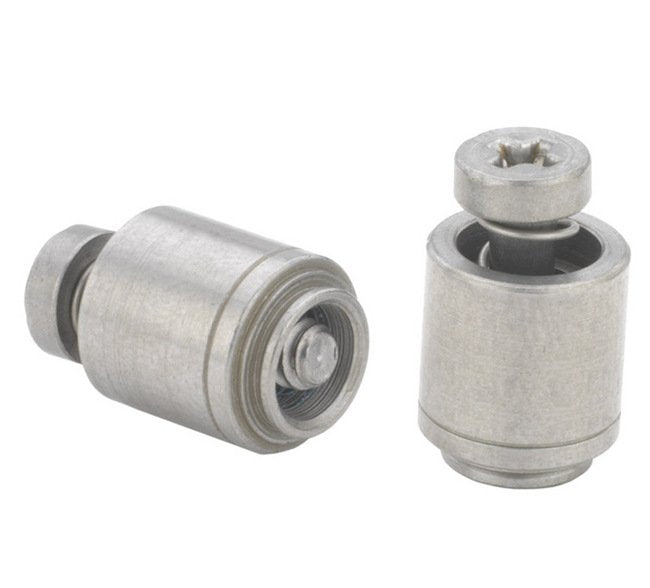

PEM Captive Panel Screw Tool PFC4

PEM Captive Panel Screw Tool PFC4

PEM-8c4aac

UL approved PEM Captive Panel Screw Tool for stainless steel sheets HRB 88 or less. Fully concealed-head for tool-only access. ANSI B1.1, 2A compliant.

$29.99
$29.99
Sale

Initiate Order

PEM Captive Panel Screw Tool PFC4

PEM Captive Panel Screw Tool PFC4

$29.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw Tool PFC4

PEM Captive Panel Screw Tool PFC4

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PEM Captive Panel Screw Tool PFC4 is designed for easy installation into stainless steel sheets of HRB 88 or less. Featuring a fully concealed-head for tool-only access, this UL approved tool is ideal for a variety of applications. With a driver size of #2 Phillips and a thread size of .138-32 (#6-32), this tool ensures secure fastening and efficiency. Made from high-quality 400 series stainless steel and spring-loaded with 300 series stainless steel, it guarantees durability and reliability. Meeting ANSI B1.1, 2A thread specifications, this tool complies with industry standards for exceptional performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

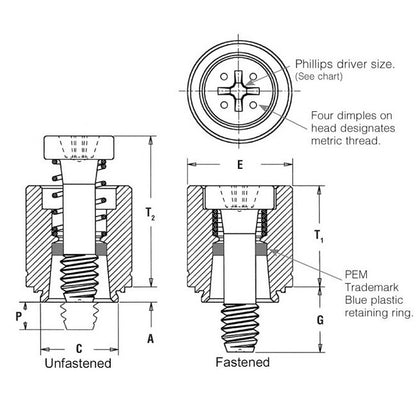

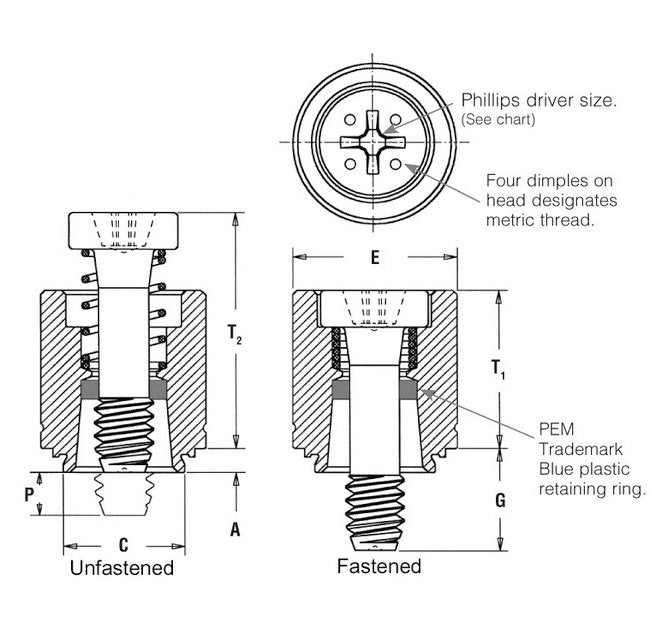

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.280 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.375 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell “B” Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 016
.250 in
Specifications Hole Size In Sheet 0003 0000
.281 in
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.28 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.000 in
Specifications Screw Length Code
40
Specifications T1 Max
.38 in
Specifications T2 Nom
.540 in
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC4
