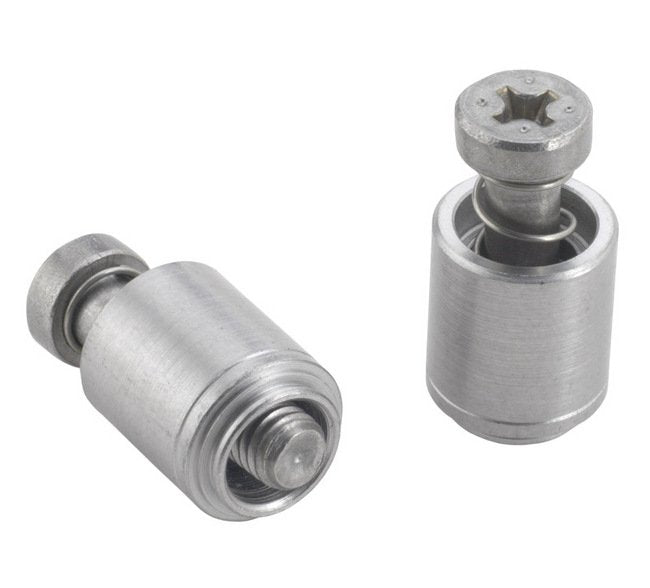

PEM Captive Panel Screw-Tool, PFC4 Metric

Name: PEM Captive Panel Screw-Tool, PFC4 Metric
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-262c0c
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-262c0c

Upgrade metal sheet installations with the PEM Captive Panel Screw-Tool, designed for HRB 88 or less stainless steel sheets. UL approved with concealed-head design.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your metal sheet installations with the PEM Captive Panel Screw-Tool, designed for HRB 88 or less stainless steel sheets. Featuring a fully concealed-head for tool-only access, this UL approved screw with assorted lengths ensures secure fastening. With a thread size of M5 x 0.8 and crafted from high-quality stainless steel, this tool delivers reliability and durability. Ideal for institutional and government procurement, meeting stringent industry standards for safety and quality.

Product Specifications

Specifications A Shank Max

1.53 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

8.72 mm

Specifications Driver Size

#2 Phillips

Specifications E 025

11.1 mm

Specifications Finish Retainer

Passivated and/or tested per ASTM A380

Specifications Finish Screw

Passivated and/or tested per ASTM A380

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)

Specifications G 04

7.90 mm

Specifications Hole Size In Sheet 008

8.74 mm

Specifications Material Retainer

400 Series Stainless Steel

Specifications Material Screw

400 Series Stainless Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

8.63 mm

Specifications Min Sheet Thickness

1.53 mm

Specifications P 064

0 mm

Specifications Screw Length Code

Specifications T1 Max

12.45 mm

Specifications T2 Nom

17.91 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M5 x 0.8

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PFC4
