PEM Captive Panel Screw Tool - PFC4, Non Flush

PEM Captive Panel Screw Tool - PFC4, Non Flush

PEM-211569

Securely install PEM Captive Panel Screw Tool (PFC4) in stainless steel sheets. Concealed head for tool-only access. ANSI standard compliant.

$14.99
$14.99
Sale

Initiate Order

PEM Captive Panel Screw Tool - PFC4, Non Flush

PEM Captive Panel Screw Tool - PFC4, Non Flush

$14.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw Tool - PFC4, Non Flush

PEM Captive Panel Screw Tool - PFC4, Non Flush

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

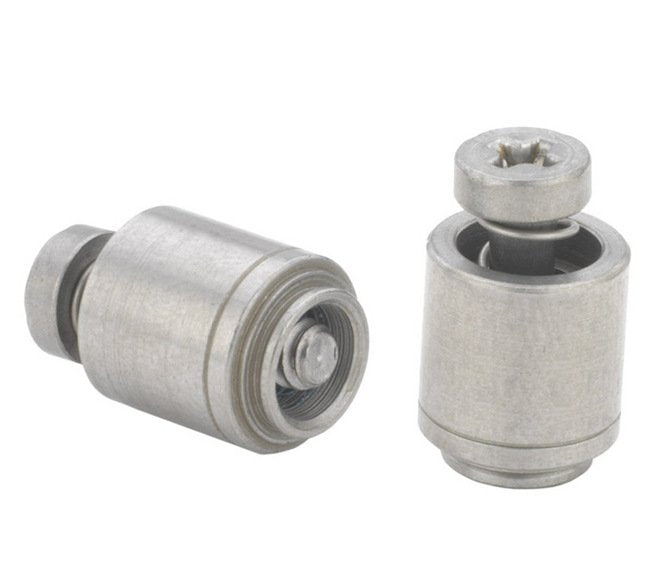

The PEM Captive Panel Screw Tool (Type PFC4) is designed for easy installation into stainless steel sheets with HRB 88 or less. Featuring a fully concealed head for tool-only access, this spring-loaded screw provides secure fastening. With assorted screw lengths available, it offers versatile usage in various applications. Made of high-quality stainless steel materials and compliant with ANSI standards, this tool ensures reliable performance and durability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

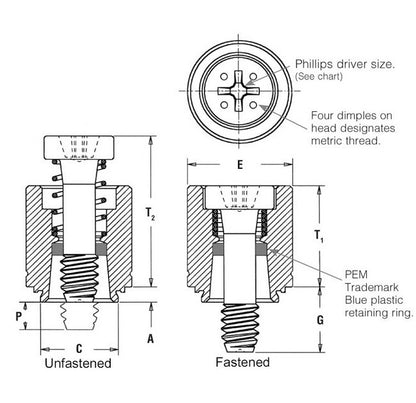

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.311 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.406 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell “B” Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 016
.437 in
Specifications Hole Size In Sheet 0003 0000
.312 in
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.31 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.125 in
Specifications Screw Length Code
72
Specifications T1 Max
.480 in
Specifications T2 Nom
.705 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC4
