PEM Captive Panel Screw-Tool PFC4, Non Flush, Spring-loaded - Unified

PEM Captive Panel Screw-Tool PFC4, Non Flush, Spring-loaded - Unified

PEM-ce2604

UL approved PEM Captive Panel Screw-Tool for stainless steel sheets HRB 88 or less. Secure, tool-only access with versatile screw lengths.

$29.99
$29.99
Sale

Initiate Order

PEM Captive Panel Screw-Tool PFC4, Non Flush, Spring-loaded - Unified

PEM Captive Panel Screw-Tool PFC4, Non Flush, Spring-loaded - Unified

$29.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw-Tool PFC4, Non Flush, Spring-loaded - Unified

PEM Captive Panel Screw-Tool PFC4, Non Flush, Spring-loaded - Unified

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

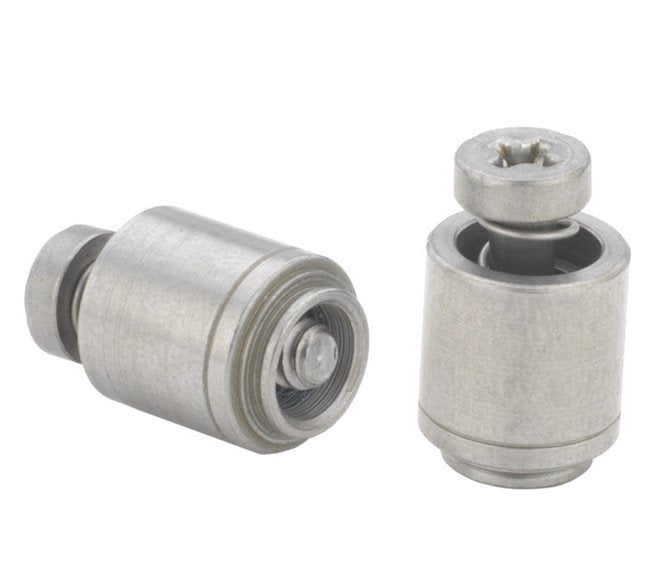

The PEM Captive Panel Screw-Tool PFC4 is designed for easy installation in stainless steel sheets with HRB 88 hardness or less. Featuring a fully concealed head for exclusive tool access, this UL approved screw ensures secure fastening and versatile application options with assorted screw lengths. With specifications meeting ANSI B1.1 standards, the stainless steel construction and passivated finish guarantee durability and corrosion resistance, making it ideal for various industrial and institutional settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

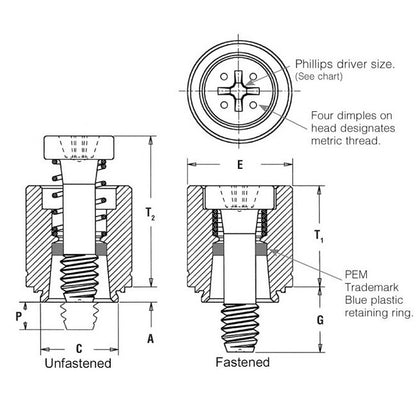

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.343 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.437 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell “B” Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 016
.312 in
Specifications Hole Size In Sheet 0003 0000
.344 in
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.34 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.000 in
Specifications Screw Length Code
50
Specifications T1 Max
.490 in
Specifications T2 Nom
.705 in
Specifications Thread Code
032
Specifications Thread Size
.190-32 (#10;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC4
