PEM Captive Panel Screw-Tool PFC4 - Unified

PEM Captive Panel Screw-Tool PFC4 - Unified

PEM-732814

Precision-engineered PEM Captive Panel Screw-Tool PFC4 for secure, tool-only access in metal sheets. UL approved & durable stainless steel construction.

$24.99
$24.99
Sale

Initiate Order

PEM Captive Panel Screw-Tool PFC4 - Unified

PEM Captive Panel Screw-Tool PFC4 - Unified

$24.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw-Tool PFC4 - Unified

PEM Captive Panel Screw-Tool PFC4 - Unified

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

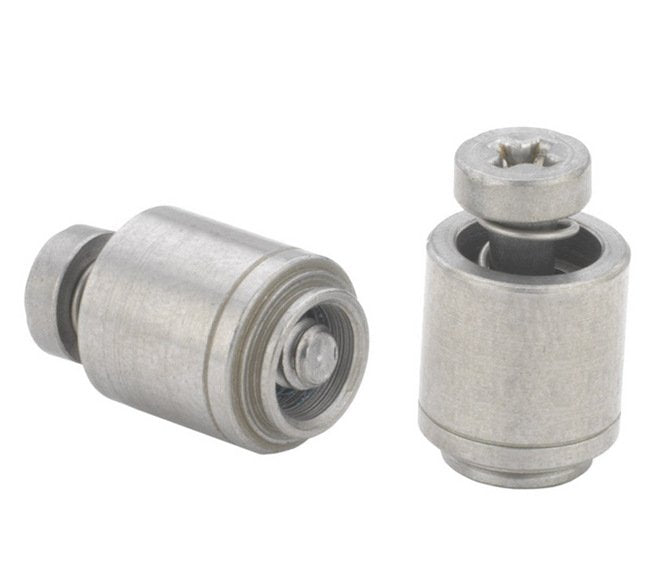

The PEM Captive Panel Screw-Tool PFC4 is meticulously crafted to provide reliable fastening solutions for metal sheets. With a thread size of .112-40 (#4;-40), this spring-loaded screw offers a non-flush design for secure installations in sheets with minimum thicknesses of .060 inches. Its 400 Series Stainless Steel construction ensures durability and corrosion resistance, meeting stringent ASTM A380 standards. The UL approval underscores its quality and safety. Ideal for applications requiring a concealed-head design for exclusive tool access.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

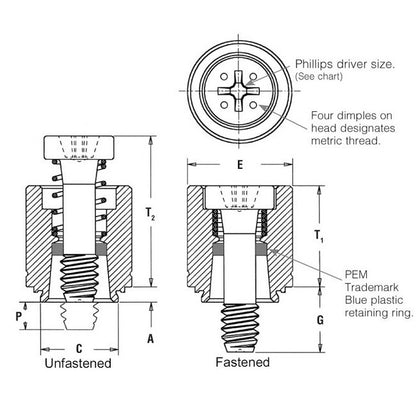

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.264 in
Specifications Driver Size
#1 Phillips
Specifications E 010
.344 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell “B” Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 016
.250 in
Specifications Hole Size In Sheet 0003 0000
.265 in
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.250 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.000 in
Specifications Screw Length Code
40
Specifications T1 Max
.370 in
Specifications T2 Nom
.540 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC4
