PEM Captive Panel Screw-Tool PFC4 - Unified

PEM Captive Panel Screw-Tool PFC4 - Unified

PEM-904358

UL-approved PEM Captive Panel Screw-Tool PFC4 for stainless steel sheets. Reliable fastening solution.

$12.99
$12.99
Sale

Initiate Order

PEM Captive Panel Screw-Tool PFC4 - Unified

PEM Captive Panel Screw-Tool PFC4 - Unified

$12.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw-Tool PFC4 - Unified

PEM Captive Panel Screw-Tool PFC4 - Unified

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PEM Captive Panel Screw-Tool PFC4 is designed for easy installation into stainless steel sheets with HRB 88 hardness or less. Featuring a fully concealed-head for tool only access, this UL-approved screw is ideal for a variety of applications. With precise specifications including a #2 Phillips driver size and 400 Series Stainless Steel construction, this screw ensures secure and reliable fastening in compliance with industry standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

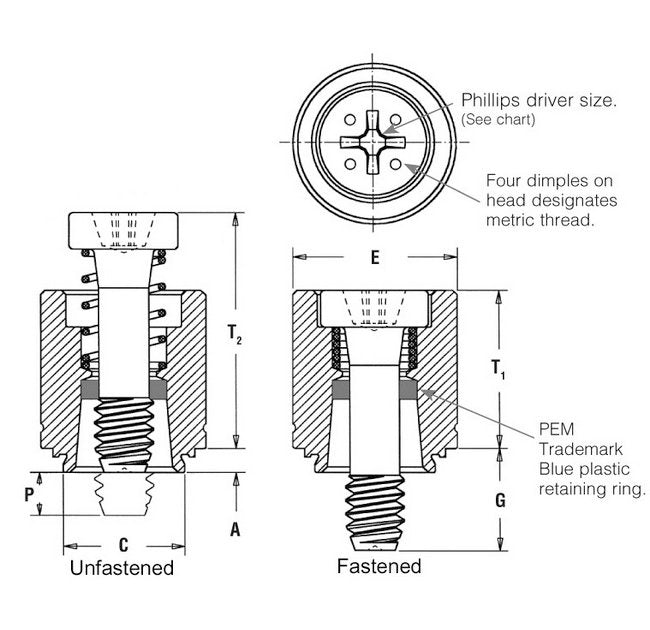

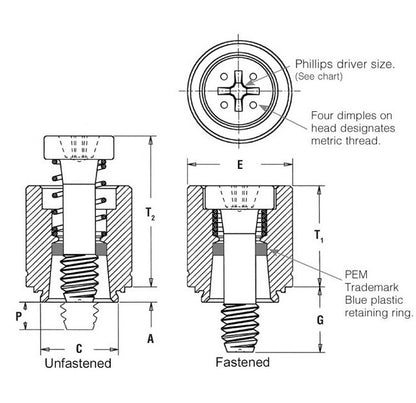

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.311 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.406 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell “B” Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 016
.562 in
Specifications Hole Size In Sheet 0003 0000
.312 in
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.31 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.250 in
Specifications Screw Length Code
94
Specifications T1 Max
.480 in
Specifications T2 Nom
.705 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC4
