PEM Captive Panel Screw-Tool SCB

Name: PEM Captive Panel Screw-Tool SCB
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-fcb6bc
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-fcb6bc

High-quality PEM Captive Panel Screw-Tool SCB for secure and durable fastening on metal sheets and panels.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PEM Captive Panel Screw-Tool SCB is a high-quality fastening solution designed for metal sheets and panels. Featuring a thread size of .138-32 (#6-32) and heat-treated carbon steel construction, this tool ensures durability and secure fastening. With a patented spinning clinch bolt design and zinc plated finish per ASTM B633, SC1, it offers corrosion resistance and reliable performance in various environments. Ideal for applications requiring a minimum sheet thickness of .040 inches, this tool also complies with ANSI B1.1, 2A thread specifications.

Product Specifications

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Driver Size

#2 Phillips

Specifications E 010

.291 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 0003 0000

.138 in

Specifications H Nom

.080 in

Specifications L Length 015

.500 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.15 in

Specifications Min Sheet Thickness

.040 in

Specifications Screw Length Code

Specifications Thread Code

632

Specifications Thread Size

.138-32 (#6;-32)

Specifications Thread Specification

ANSI B1.1, 2A

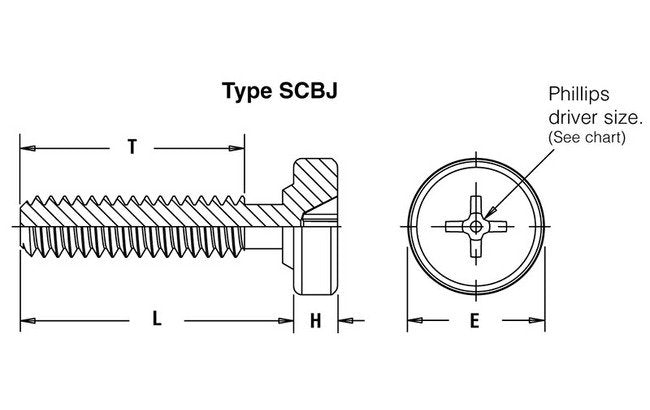

Specifications Type

Jacking - SCBJ

Specifications T Nom

.410 in
