PEM Captive Panel Screw Tool SCB - .112-40 Jacking Type SCBJ

Name: PEM Captive Panel Screw Tool SCB - .112-40 Jacking Type SCBJ
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-ba88d6
Price: 34.99 USD
Availability: OutOfStock

SKU:PEM-ba88d6

Securely fasten metal sheets with precision using the PEM Captive Panel Screw Tool SCB, meeting ANSI standards.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

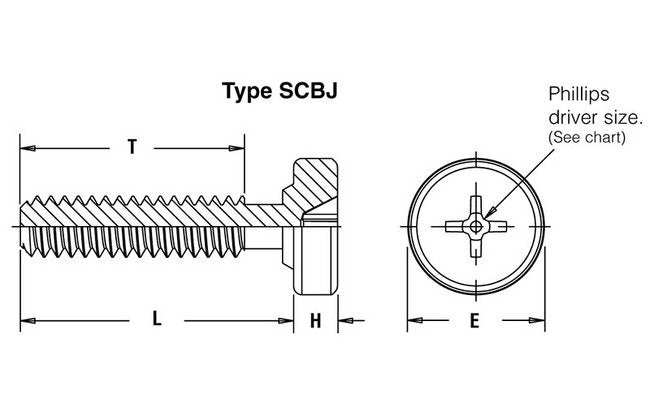

The PEM Captive Panel Screw Tool SCB is designed for secure fastening in metal sheets, meeting ANSI standards with a thread size of .112-40 (#4-40). Made of heat-treated carbon steel with a zinc plated finish, this spinning clinch bolt with no spring ensures reliable performance. With a driver size of #1 Phillips, it features precise dimensions for sheet thickness, hole size, and length. Trust the trusted CAD supplier PennEngineering® (PEM®) for quality and compliance with industry standards.

Product Specifications

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Driver Size

#1 Phillips

Specifications E 010

.250 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 0003 0000

.112 in

Specifications H Nom

.080 in

Specifications L Length 015

.500 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.130 in

Specifications Min Sheet Thickness

.040 in

Specifications Screw Length Code

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

Jacking - SCBJ

Specifications T Nom

.410 in

PEM Captive Panel Screw Tool SCB - .112-40 Jacking Type SCBJ
