PEM Captive Panel Screw-Tool SCB - Thread Size .112-40, Jacking Type SCBJ, Heat-Treated Carbon Steel

Name: PEM Captive Panel Screw-Tool SCB - Thread Size .112-40, Jacking Type SCBJ, Heat-Treated Carbon Steel
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-2ed6dd
Price: 12.99 USD
Availability: OutOfStock

SKU:PEM-2ed6dd

High-quality PEM Captive Panel Screw-Tool SCB for secure fastening in metal sheets. Jacking Type SCBJ, zinc plated finish, ANSI B1.1 compliant.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PEM Captive Panel Screw-Tool SCB is designed for jacking applications in metal sheets and panels. Featuring a thread size of .112-40 (#4;-40) and made of heat-treated carbon steel, this spinning clinch bolt ensures secure fastening. With a zinc plated finish per ASTM B633, SC1, it meets industry standards for corrosion resistance. The screw's dimensions comply with ANSI B1.1 specifications, making it suitable for use in sheets with a hardness of HRB 80 or less. Trust PennEngineering® (PEM®) for reliable captive panel hardware that meets stringent quality and performance requirements.

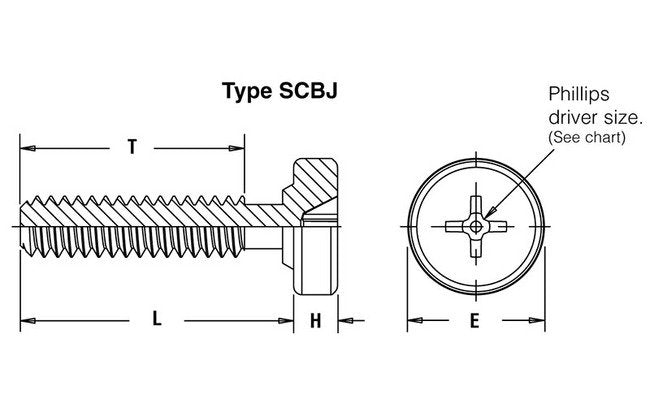

Product Specifications

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Driver Size

#1 Phillips

Specifications E 010

.250 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 0003 0000

.112 in

Specifications H Nom

.080 in

Specifications L Length 015

.375 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.130 in

Specifications Min Sheet Thickness

.040 in

Specifications Screw Length Code

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

Jacking - SCBJ

Specifications T Nom

.285 in
