PEM Captive Panel Screw Tool SCB - Unified Type, No Spring
PEM Captive Panel Screw Tool SCB - Unified Type, No Spring
SKU:PEM-0442d7
High-quality PEM Captive Panel Screw Tool SCB for secure fastening on metal sheets, zinc-plated for corrosion resistance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Tool SCB - Unified Type, No Spring
$24.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Tool SCB - Unified Type, No Spring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

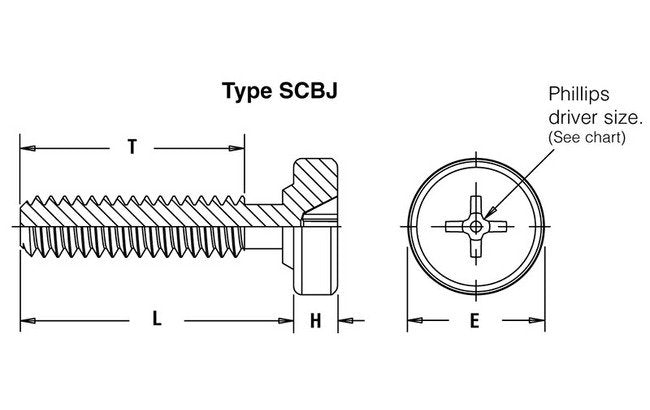

The PEM Captive Panel Screw Tool SCB is a high-quality fastening solution designed for metal sheets and panels. Featuring precise specifications including a thread size of .138-32 (#6-32) and heat-treated carbon steel construction, this tool ensures reliable performance. The zinc-plated finish per ASTM B633, SC1 provides corrosion resistance, making it suitable for various applications requiring a secure fastening method. With a driver size of #2 Phillips, this tool offers easy installation and removal, meeting industry standards and specifications for durability and efficiency.
Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#2 Phillips
Specifications E 010
.291 in
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 0003 0000
.138 in
Specifications H Nom
.080 in
Specifications L Length 015
.375 in
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.15 in
Specifications Min Sheet Thickness
.040 in
Specifications Screw Length Code
6
Specifications Thread Code
632
Specifications Thread Size
.138-32 (#6;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Jacking - SCBJ
Specifications T Nom
.285 in
