PEM Captive Panel Screw-Tool SCB - Unified Type SCBJ

Name: PEM Captive Panel Screw-Tool SCB - Unified Type SCBJ
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-614250
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-614250

High-performance PEM Captive Panel Screw-Tool SCB - Unified Type SCBJ for metal sheets & panels.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PEM Captive Panel Screw-Tool SCB, Unified Type SCBJ, is a high-quality fastening solution ideal for metal sheets and panels. Made of heat-treated carbon steel with a zinc-plated finish per ASTM B633, SC1, it offers exceptional durability and corrosion resistance. This spinning clinch bolt features precise specifications including thread size .112-40, suitable for minimum sheet thickness of .040 in, with a driver size of #1 Phillips. Trusted by institutions and government agencies, this PEM product meets ANSI B1.1, 2A standards for reliable performance.

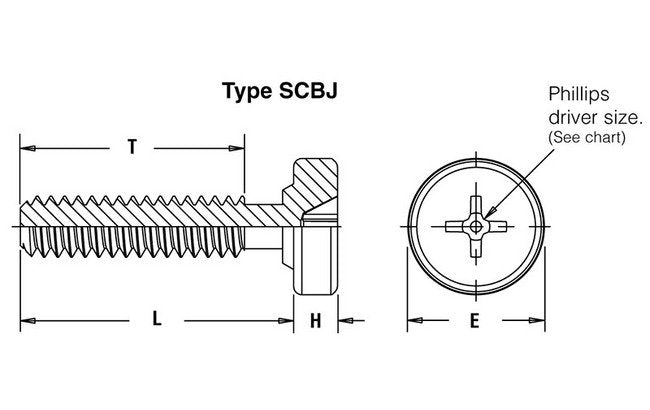

Product Specifications

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Driver Size

#1 Phillips

Specifications E 010

.250 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 0003 0000

.112 in

Specifications H Nom

.080 in

Specifications L Length 015

.250 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.130 in

Specifications Min Sheet Thickness

.040 in

Specifications Screw Length Code

Specifications Thread Code

440

Specifications Thread Size

.112-40 (#4;-40)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

Jacking - SCBJ

Specifications T Nom

.160 in

PEM Captive Panel Screw-Tool SCB - Unified Type SCBJ
