PEM Captive Panel Screw-Tool SCBJ Metric
PEM Captive Panel Screw-Tool SCBJ Metric
SKU:PEM-56faed
High-quality PEM Captive Panel Screw-Tool SCBJ Metric for metal sheets, M3 x 0.5 thread, durable zinc-plated carbon steel construction, ANSI/ASME compliant.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
PEM Captive Panel Screw-Tool SCBJ Metric
$14.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw-Tool SCBJ Metric
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

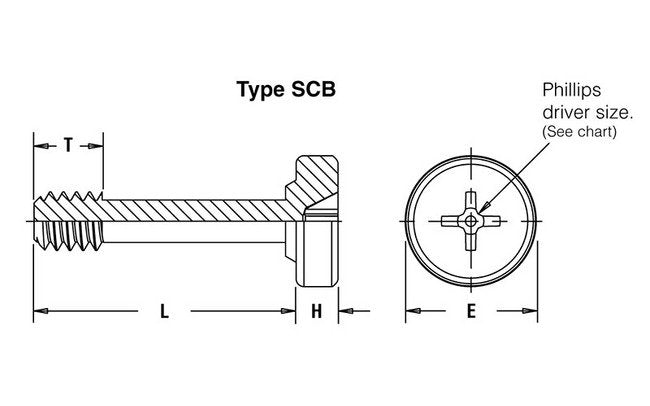

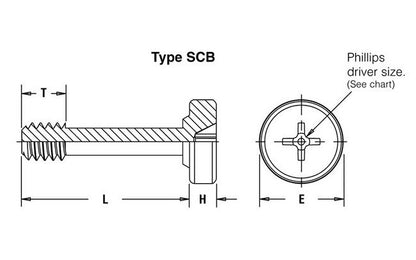

The PEM Captive Panel Screw-Tool SCBJ Metric is a high-quality fastening solution designed for metal sheets and panels. This spinning clinch bolt features a non-jacking design, M3 x 0.5 thread size, 12mm screw length, and heat-treated carbon steel construction with zinc plating for durability. Meeting ANSI/ASME standards, this tool ensures secure fastening with a #1 Phillips driver size. Ideal for sheet hardness up to HRB 80 or HB 150, it offers reliable performance while adhering to industry regulations.
Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#1 Phillips
Specifications E 025
6.60 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
3 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
12 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
3.3 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Nom Axial Float
7.67 mm
Specifications Screw Length Code
12
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Non-Jacking - SCB
Specifications T Nom
3.30 mm
