PEM Captive Panel Screw-Tool SCBJ Metric
PEM Captive Panel Screw-Tool SCBJ Metric
SKU:PEM-ff30ef
High-quality PEM Captive Panel Screw-Tool SCBJ Metric for secure metal sheet fastening. ANSI/ASME compliant with durable construction and corrosion resistance.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
PEM Captive Panel Screw-Tool SCBJ Metric
$9.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw-Tool SCBJ Metric
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw-Tool SCBJ Metric is a high-quality spinning clinch bolt designed for securing metal sheets with precision. With specifications meeting ANSI/ASME standards and made of heat-treated carbon steel with zinc plating, this screw ensures durability and corrosion resistance. Its specialized design includes a jacking feature, making it suitable for materials with a hardness of HRB 80 or less. The screw length, thread size, and driver size are optimized for easy installation and secure fastening, ideal for industrial applications.
Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)

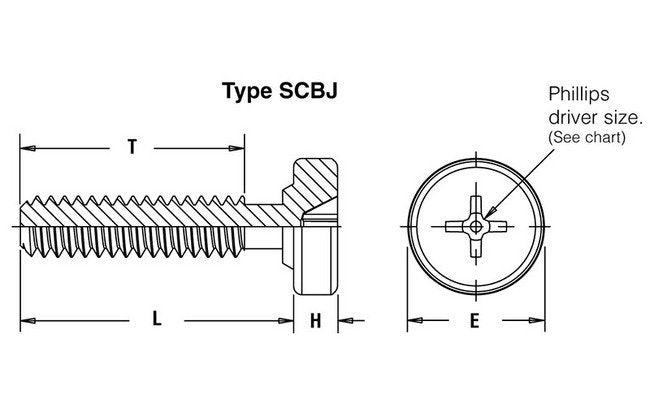

Specifications Driver Size
#1 Phillips
Specifications E 025
6.60 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
3 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
14 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
3.3 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Screw Length Code
14
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Jacking - SCBJ
Specifications T Nom
11.70 mm
