PEM Captive Panel Screw Tool SCBJ, Metric M4 x 0.7, Non-Jacking SCB, Zinc-Plated

PEM Captive Panel Screw Tool SCBJ, Metric M4 x 0.7, Non-Jacking SCB, Zinc-Plated

PEM-c5eace

Enhance metal panel assembly with precision using PEM Captive Panel Screw Tool SCBJ, M4 x 0.7, Non-Jacking SCB, Zinc-Plated finish.

$14.99
$14.99
Sale

Initiate Order

PEM Captive Panel Screw Tool SCBJ, Metric M4 x 0.7, Non-Jacking SCB, Zinc-Plated

PEM Captive Panel Screw Tool SCBJ, Metric M4 x 0.7, Non-Jacking SCB, Zinc-Plated

$14.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw Tool SCBJ, Metric M4 x 0.7, Non-Jacking SCB, Zinc-Plated

PEM Captive Panel Screw Tool SCBJ, Metric M4 x 0.7, Non-Jacking SCB, Zinc-Plated

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PEM Captive Panel Screw Tool SCBJ is engineered for precision, featuring M4 x 0.7 thread size, ideal for metal sheets up to 1.02mm thick. With a heat-treated carbon steel construction and zinc plating per ASTM B633, SC1, this spinning clinch bolt ensures durability and corrosion resistance. Compliant with ANSI/ASME B1.13M 6g thread specification, it offers easy installation with a #2 Phillips driver. Designed for sheet hardness up to HRB 80 or HB 150, this tool delivers reliable performance in various applications.

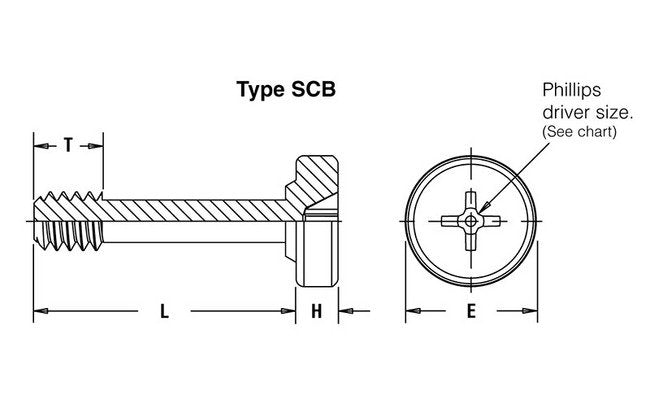

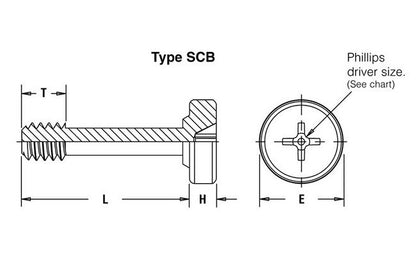

Product Specifications

Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#2 Phillips
Specifications E 025
8.28 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
4 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
14 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
5.00 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Nom Axial Float
7.67 mm
Specifications Screw Length Code
14
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Non-Jacking - SCB
Specifications T Nom
5.30 mm
