PEM Captive Panel Screw-Tool SCBJ Metric Type

Name: PEM Captive Panel Screw-Tool SCBJ Metric Type
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-e70fd5
Price: 12.99 USD
Availability: OutOfStock

SKU:PEM-e70fd5

High-quality PEM Captive Panel Screw-Tool SCBJ Metric Type for metal sheets and panels. M4 x 0.7 thread, 12mm length, zinc-plated finish. ANSI/ASME B1.13M 6g compliant.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PEM Captive Panel Screw-Tool SCBJ Metric Type is a high-quality fastening solution designed for metal sheets and panels. This screw features a thread size of M4 x 0.7, a screw length of 12mm, and a heat-treated carbon steel construction with a zinc-plated finish for durability and corrosion resistance. It complies with ANSI/ASME B1.13M 6g thread specifications and is suitable for use in sheets with a hardness of HRB 80 or less. The tool is precision-engineered by PennEngineering® (PEM®), ensuring reliability and performance.

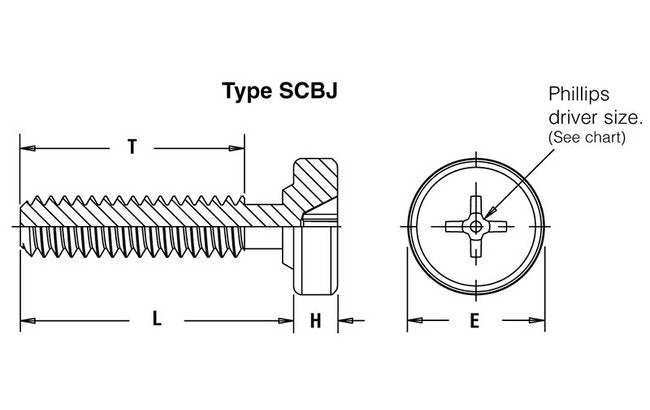

Product Specifications

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Driver Size

#2 Phillips

Specifications E 025

8.28 mm

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 008

4 mm

Specifications H Nom

2.03 mm

Specifications L Length 04

12 mm

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

5.00 mm

Specifications Min Sheet Thickness

1.02 mm

Specifications Screw Length Code

Specifications Thread Code

Specifications Thread Size X Pitch

M4 x 0.7

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

Jacking - SCBJ

Specifications T Nom

9.70 mm
