PEM Captive Panel Screw-Tool, Spinning Clinch Bolt SCB - Unified Type SCB
PEM Captive Panel Screw-Tool, Spinning Clinch Bolt SCB - Unified Type SCB
SKU:PEM-5b5a86
PEM Captive Panel Screw-Tool, Spinning Clinch Bolt SCB - Unified SCB design for secure, compliant fastening in metal sheets.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM Captive Panel Screw-Tool, Spinning Clinch Bolt SCB - Unified Type SCB
$24.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw-Tool, Spinning Clinch Bolt SCB - Unified Type SCB
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw-Tool, featuring a Non-Jacking SCB design, is crafted from heat-treated carbon steel and zinc-plated per ASTM B633 standards for exceptional durability and corrosion resistance. With precise specifications meeting ANSI B1.1, 2A thread standards, this tool ensures secure fastening in metal sheets of up to .040 in thickness. The #1 Phillips driver size offers easy installation, making it ideal for industrial applications requiring reliability and compliance with stringent standards like HRB 80 sheet hardness. Upgrade your procurement with PEM's trusted quality and precision engineering.

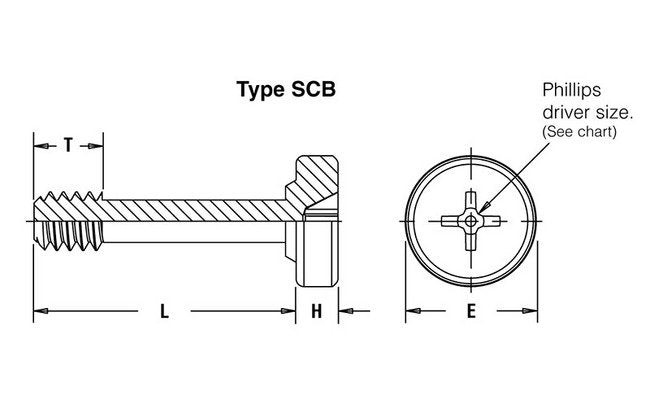

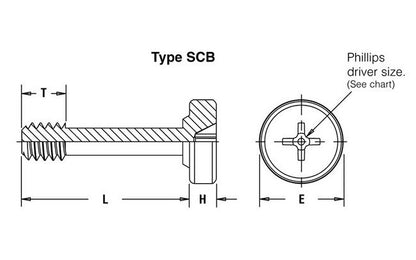

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#1 Phillips
Specifications E 010
.250 in
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 0003 0000
.112 in
Specifications H Nom
.080 in
Specifications L Length 015
.500 in
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
.130 in
Specifications Min Sheet Thickness
.040 in
Specifications Nom Axial Float
.330 in
Specifications Screw Length Code
8
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
Non-Jacking - SCB
Specifications T Nom
.130 in
