PEM Captive Panel Screw-Tool, Spinning Clinch Bolt - SCBJ Type, Tool Only

Name: PEM Captive Panel Screw-Tool, Spinning Clinch Bolt - SCBJ Type, Tool Only
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-4baaba
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-4baaba

Enhance fastening efficiency with the PEM Captive Panel Screw-Tool - SCBJ Type, ideal for metal sheets up to .040in thick. Designed for jacking with a #2 Phillips driver. PennEngineering quality.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your fastening solutions with the PEM Captive Panel Screw-Tool. This SCBJ Type spin bolt tool offers precise thread size .138-32 (#6-32), with jacking capability and a minimum sheet thickness of .040in. Made of heat-treated carbon steel with a zinc finish, it meets ANSI B1.1, 2A specifications. Ideal for use in metal sheets up to HRB 80 hardness. Trust in PennEngineering’s expertise for reliable performance.

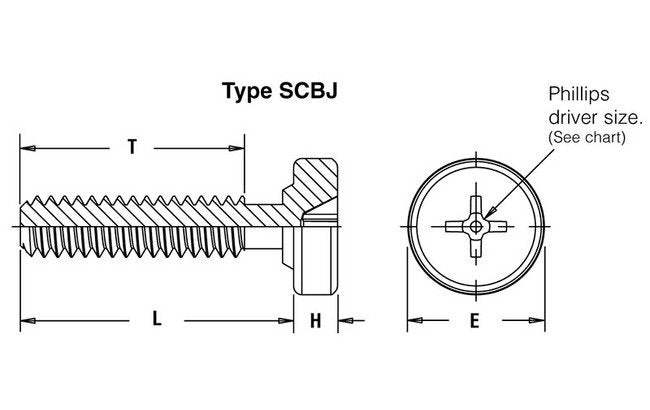

Product Specifications

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Driver Size

#2 Phillips

Specifications E 010

.291 in

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 0003 0000

.138 in

Specifications H Nom

.080 in

Specifications L Length 015

.250 in

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

.15 in

Specifications Min Sheet Thickness

.040 in

Specifications Screw Length Code

Specifications Thread Code

632

Specifications Thread Size

.138-32 (#6;-32)

Specifications Thread Specification

ANSI B1.1, 2A

Specifications Type

Jacking - SCBJ

Specifications T Nom

.160 in
