PEM Captive Panel Screw-Tool (Spring-loaded, Non Flush) Metric Type PFC2P

PEM Captive Panel Screw-Tool (Spring-loaded, Non Flush) Metric Type PFC2P

PEM-dbba70

Secure and durable PEM Captive Panel Screw-Tool for metal sheets - Spring-loaded, Non Flush design, UL approved. Ideal for various applications.

$12.99
$12.99
Sale

Initiate Order

PEM Captive Panel Screw-Tool (Spring-loaded, Non Flush) Metric Type PFC2P

PEM Captive Panel Screw-Tool (Spring-loaded, Non Flush) Metric Type PFC2P

$12.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw-Tool (Spring-loaded, Non Flush) Metric Type PFC2P

PEM Captive Panel Screw-Tool (Spring-loaded, Non Flush) Metric Type PFC2P

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

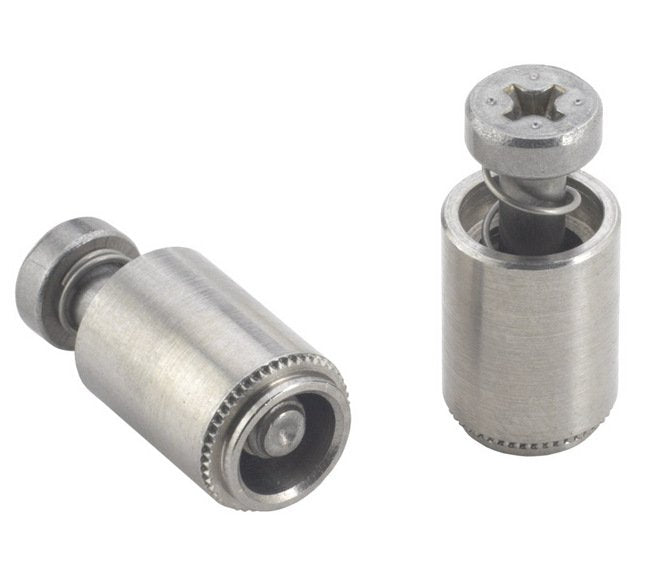

The PEM Captive Panel Screw-Tool (Spring-loaded, Non Flush) Metric Type PFC2P offers a fully concealed-head design for tool access only. UL approved and crafted with 300 and 400 series stainless steel materials, this screw provides secure fastening for metal sheets. With a thread size of M3 x 0.5 and compliance with ANSI/ASME specifications, it ensures reliability and durability. The spring-loaded mechanism and precise dimensions make it ideal for various applications with sheet hardness up to HRB 70 or HB 125.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

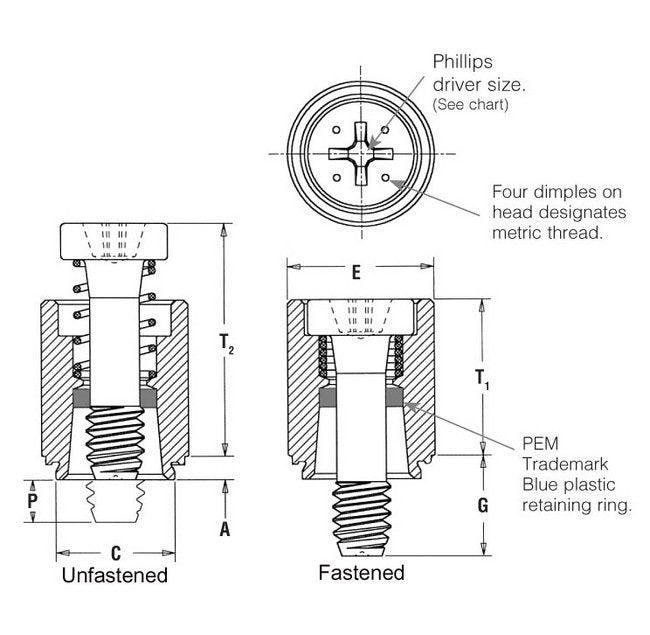

Product Specifications

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.71 mm
Specifications Driver Size
#1 Phillips
Specifications E 025
7.92 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 04
6.40 mm
Specifications Hole Size In Sheet 008
6.73 mm
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
6.35 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
0 mm
Specifications Screw Length Code
40
Specifications T1 Max
9.40 mm
Specifications T2 Nom
13.72 mm
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC2P
