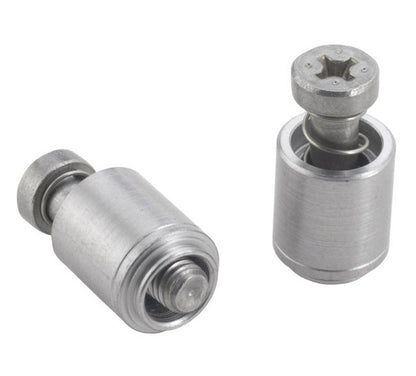

PEM Captive Panel Screw Tool - Spring-loaded PFC4 Metric
PEM Captive Panel Screw Tool - Spring-loaded PFC4 Metric
SKU:PEM-576820
Reliable tool for easy and concealed installations in stainless steel sheets. UL approved and versatile for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Tool - Spring-loaded PFC4 Metric
$29.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Tool - Spring-loaded PFC4 Metric
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw Tool is designed for quick and secure installations in stainless steel sheets with a hardness of HRB 88 or less. Featuring a fully concealed head for tool-only access, this UL-approved tool ensures reliability and convenience. With assorted screw lengths available, it offers versatility for a wide range of applications. The tool's precise specifications, including M4 x 0.7 thread size, make it ideal for Type PFC4 applications in metal panels. Trust PennEngineering® (PEM®) for quality and performance in fastening solutions.
Product Specifications
Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
7.9 mm
Specifications Driver Size
#2 Phillips
Specifications E 025
10.31 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 04
7.90 mm
Specifications Hole Size In Sheet 008
7.92 mm
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
7.87 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
0 mm
Specifications Screw Length Code
50
Specifications T1 Max
12.19 mm
Specifications T2 Nom
17.91 mm
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC4
