PEM Captive Panel Screw Tool with Spinning Clinch Bolt SCBJ - Metric M3 x 0.5
PEM Captive Panel Screw Tool with Spinning Clinch Bolt SCBJ - Metric M3 x 0.5
SKU:PEM-ff8b45
PEM Captive Panel Screw Tool with Spinning Clinch Bolt SCBJ - Metric M3 x 0.5, ideal for metal sheet fastening.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Tool with Spinning Clinch Bolt SCBJ - Metric M3 x 0.5
$12.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Tool with Spinning Clinch Bolt SCBJ - Metric M3 x 0.5
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

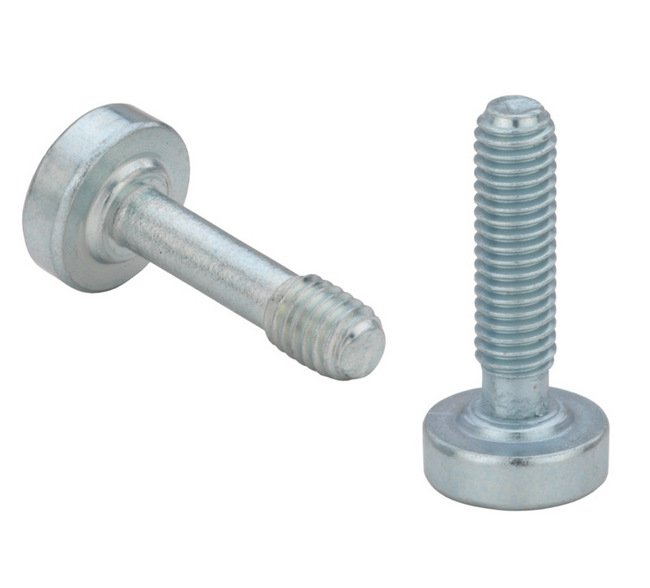

The PEM Captive Panel Screw Tool, featuring a Spinning Clinch Bolt SCBJ, is a high-quality fastening solution designed for metal sheets and panels. With a precise thread size of M3 x 0.5 and heat-treated carbon steel construction, this tool ensures secure fastening with a zinc plated finish for corrosion resistance. Meeting ANSI/ASME B1.13M 6g thread specifications, this tool is suitable for sheet hardness up to HRB 80 or HB 150, making it compliant with industry standards for durability and reliability.

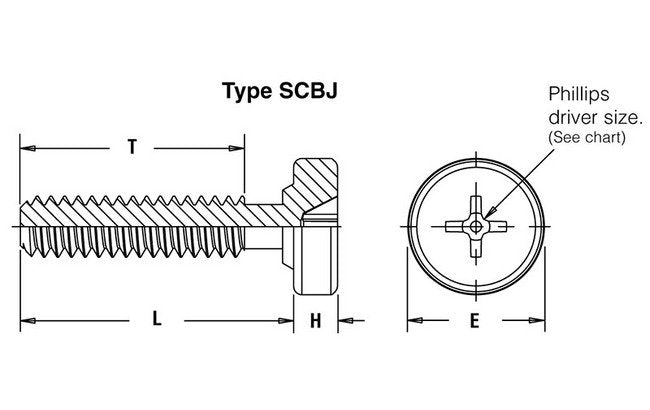

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#1 Phillips
Specifications E 025
6.60 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
3 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
6 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
3.3 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Screw Length Code
6
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Jacking - SCBJ
Specifications T Nom
3.70 mm
