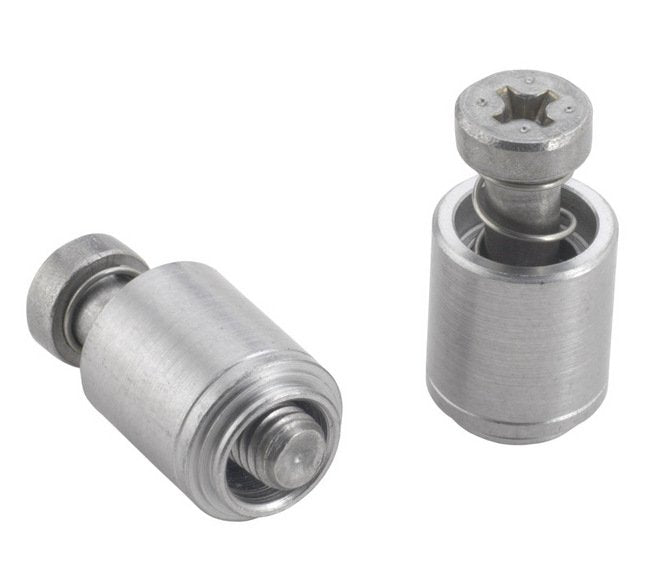

PEM Captive Panel Screw Tool with Spring-Loaded PFC4, Metric
PEM Captive Panel Screw Tool with Spring-Loaded PFC4, Metric
SKU:PEM-6e3d5a
Securely fasten stainless steel sheets with the PEM Captive Panel Screw Tool. UL approved and versatile for various applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PEM Captive Panel Screw Tool with Spring-Loaded PFC4, Metric
$24.99
Quantity: 1
Claim Your Seller Account
PEM Captive Panel Screw Tool with Spring-Loaded PFC4, Metric
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PEM Captive Panel Screw Tool provides secure fastening in stainless steel sheets up to HRB 88. Designed with a fully concealed head for tool-only access, this tool ensures reliable installation in various applications. Featuring an UL approval and assorted screw lengths, it offers versatility and convenience for your fastening needs. With thread size M3 x 0.5, shank A max. 1.53mm, and a driver size of #1 Phillips, this tool is engineered for precision and durability. The materials used, including 400 Series Stainless Steel for the retainer and screw, and 300 Series Stainless Steel for the spring, ensure high performance, while the passivated finish complies with ASTM A380 standards.
Product Specifications
Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
6.71 mm
Specifications Driver Size
#1 Phillips
Specifications E 025
8.74 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 88 or Less (Hardness Rockwell âBâ Scale) / HB 183 or Less (Hardness Brinell)
Specifications G 04
9.50 mm
Specifications Hole Size In Sheet 008
6.73 mm
Specifications Material Retainer
400 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
6.35 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
3.20 mm
Specifications Screw Length Code
62
Specifications T1 Max
9.40 mm
Specifications T2 Nom
13.72 mm
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFC4
