PEM Captive Panel Screw-Type PFC2P Tool, Non Flush

PEM Captive Panel Screw-Type PFC2P Tool, Non Flush

PEM-8c31d4

Securely fasten metal sheets with the PEM Captive Panel Screw-Type PFC2P Tool, featuring concealed-head access, UL approval, and high-quality stainless steel construction.

$29.99
$29.99
Sale

Initiate Order

PEM Captive Panel Screw-Type PFC2P Tool, Non Flush

PEM Captive Panel Screw-Type PFC2P Tool, Non Flush

$29.99

Quantity: 1

Claim Your Seller Account

PEM Captive Panel Screw-Type PFC2P Tool, Non Flush

PEM Captive Panel Screw-Type PFC2P Tool, Non Flush

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PEM Captive Panel Screw-Type PFC2P Tool is designed for fully concealed-head access, ensuring secure fastening in metal sheets. With a thread size of .164-32 (#8-32) and made of high-quality materials like 300 Series Stainless Steel for retainers, 400 Series Stainless Steel for screws, and 300 Series Stainless Steel for springs, this tool guarantees durability and reliability. It meets ANSI B1.1, 2A thread specifications, UL approval, and is designed for use in sheets with a hardness of HRB 70 or less. The Passivated finish and precision engineering from PennEngineering® (PEM®) make it a top choice for various applications.

Product Specifications

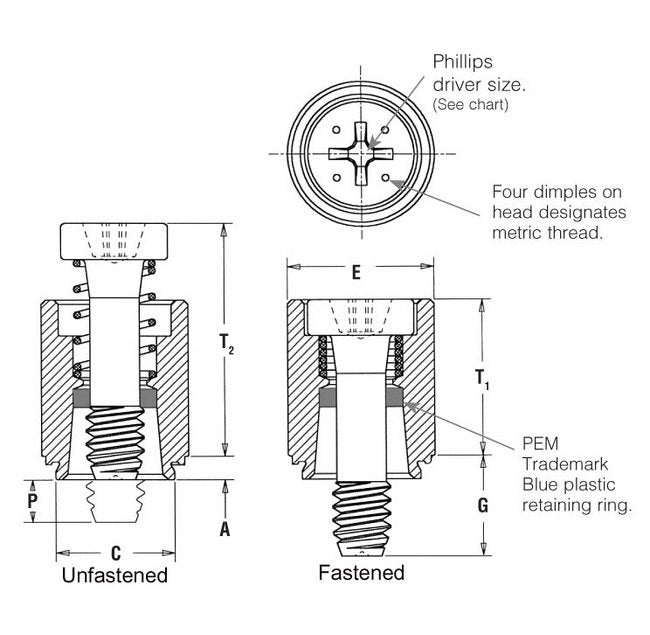

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
.311 in
Specifications Driver Size
#2 Phillips
Specifications E 010
.375 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.437 in
Specifications Hole Size In Sheet 0003 0000
.312 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
400 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.31 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.125 in
Specifications Screw Length Code
72
Specifications T1 Max
.480 in
Specifications T2 Nom
.705 in
Specifications Thread Code
832
Specifications Thread Size
.164-32 (#8;-32)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFC2P
