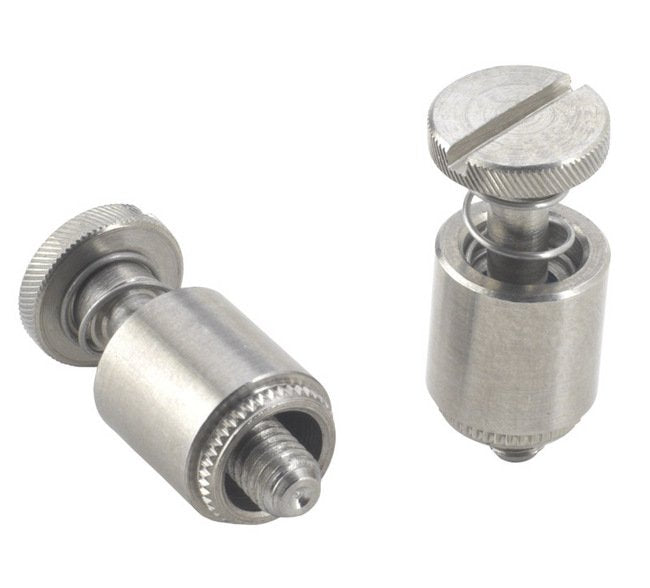

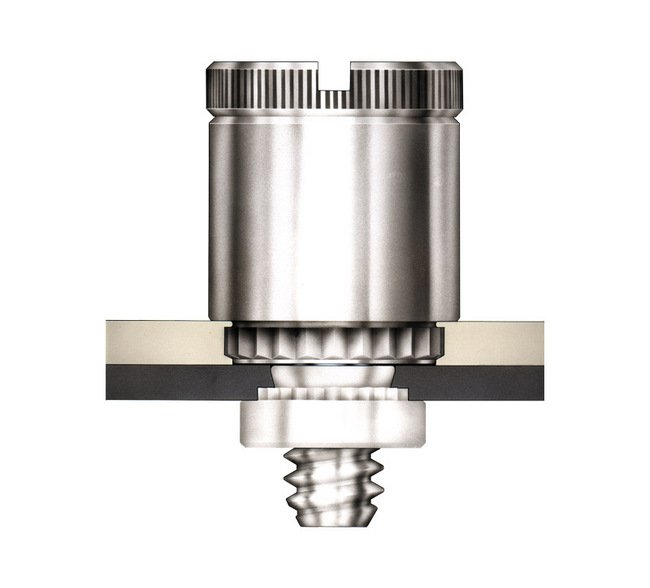

The PEM Captive Screws, Broaching for PC Boards in Metric Type PFK are precision-engineered for secure fastening on metal sheets. Featuring M3 x 0.5 thread size, these screws are made of high-quality 300 Series Stainless Steel with passivated finish, ensuring durability and corrosion resistance. Designed for sheets with thicknesses as low as 1.53 mm, these screws meet ANSI/ASME B1.13M standards, making them ideal for industrial applications requiring reliable fastening solutions. The CAD view from PennEngineeringÂ® (PEMÂ®) guarantees accurate installations.

Product Specifications

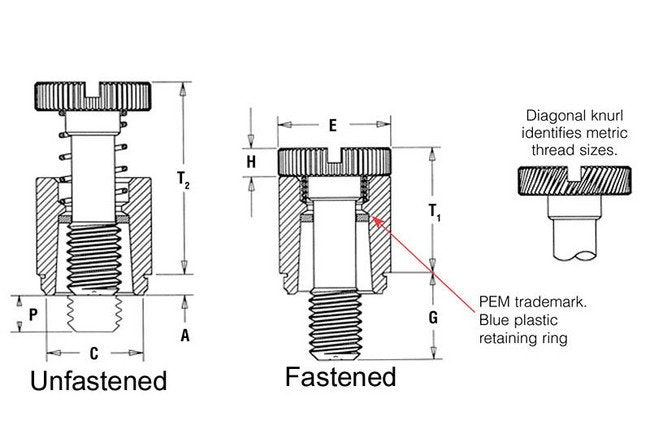

Specifications A Shank Max

1.53 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C 008

7.19 mm

Specifications E 025

7.92 mm

Specifications Finish Retainer

Passivated and/or tested per ASTM A380

Specifications Finish Screw

Passivated and/or tested per ASTM A380

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications G 04

6.40 mm

Specifications Hole Size In Sheet 008

6.73 mm

Specifications H 013

1.83 mm

Specifications Material Retainer

300 Series Stainless Steel

Specifications Material Screw

300 Series Stainless Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

5.08 mm

Specifications Min Sheet Thickness

1.53 mm

Specifications P 064

0 mm

Specifications Screw Length Code

Specifications T1 Max

9.14 mm

Specifications T2 Nom

13.72 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M3 x 0.5

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PFK
