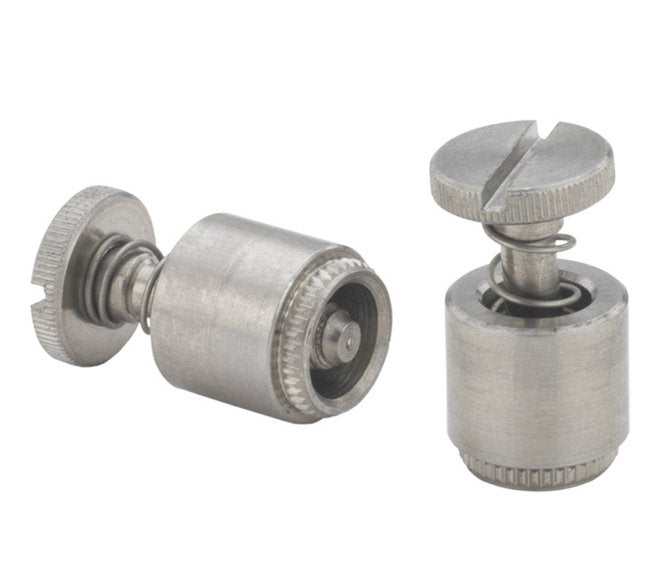

• PEM Captive Screws - Unified Type PFK - Image 1
  • PEM Captive Screws - Unified Type PFK - Image 2

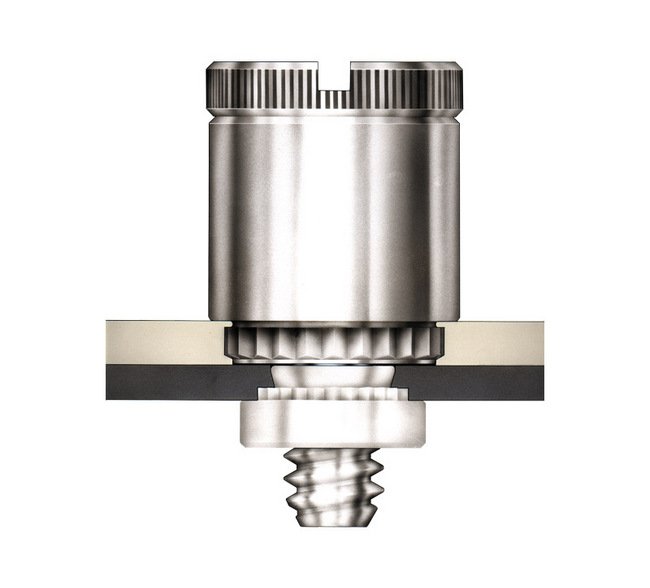

  • PEM Captive Screws - Unified Type PFK - Image 3
1 3
Hi-Tech Fasteners, Inc. →

PEM Captive Screws - Unified Type PFK

PEM Captive Screws - Unified Type PFK

PEM-c44ab9

Precision-engineered PEM captive screws for secure fastening on PC boards, featuring 300 Series Stainless Steel construction and passivated finish. CAD Supplier: PennEngineering® (PEM®).

$29.99
$29.99
Sale

Initiate Order

PEM Captive Screws - Unified Type PFK

PEM Captive Screws - Unified Type PFK

$29.99

Quantity: 1

Claim Your Seller Account

PEM Captive Screws - Unified Type PFK

PEM Captive Screws - Unified Type PFK

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PEM Captive Screws, Unified Type PFK, are precision-engineered fasteners designed for PC boards, featuring a thread size of .112-40 (#4-40) and constructed with 300 Series Stainless Steel. With a passivated finish and strict adherence to ASTM A380 standards, these screws ensure secure fastening and durability. Ideal for applications requiring a minimum sheet thickness of .060 inches and compatibility with sheet hardness up to HRB 70 or HB 125, these captive screws offer reliable performance and strength. CAD Supplier: PennEngineering® (PEM®).

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

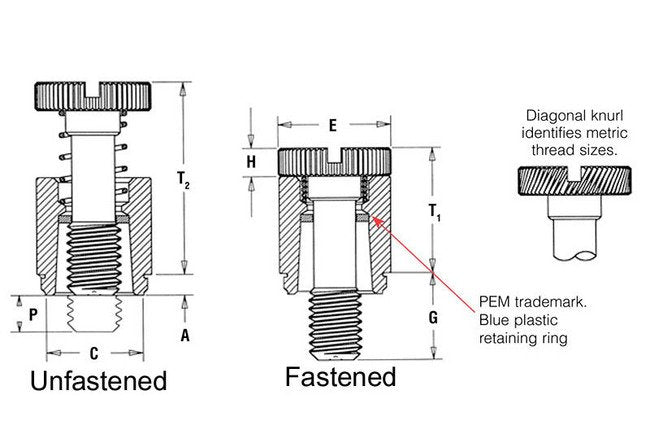

Product Specifications

Specifications A Shank Max
.060 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C 003
.283 in
Specifications E 010
.312 in
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 016
.375 in
Specifications Hole Size In Sheet 0003 0000
.265 in
Specifications H 005
.072 in
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.20 in
Specifications Min Sheet Thickness
.060 in
Specifications P 025
.125 in
Specifications Screw Length Code
62
Specifications T1 Max
.360 in
Specifications T2 Nom
.540 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2A
Specifications Type
PFK
