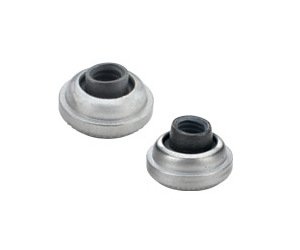

The PEM F10 Self-Clinching Floating Receptacle Nuts are designed for secure fastening in metal sheets with a minimun thickness of 1mm. With a thread size of M4 x 0.7 and made from heat-treated carbon steel with a zinc plated finish, these nuts offer reliability and durability. Meeting ANSI/ASME B1.13M standards, these nuts ensure precision and quality in installation. Ideal for applications requiring high strength and performance in captive panel screws and hardware.

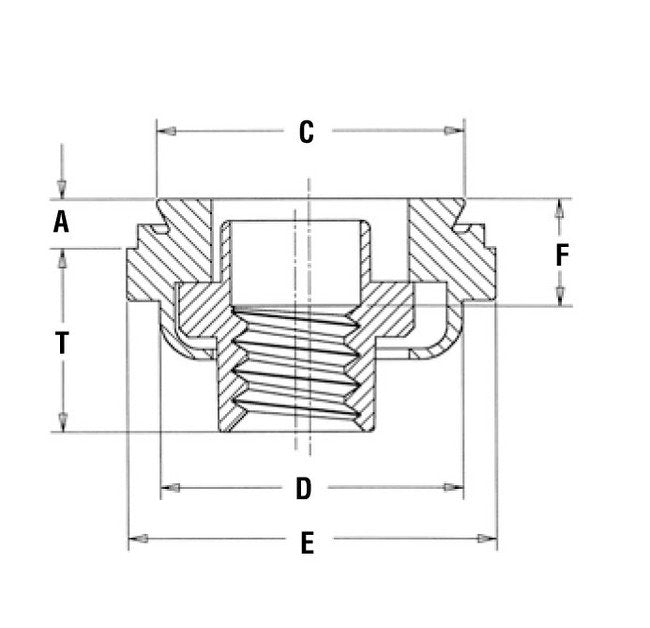

Product Specifications
Specifications A Shank Max
0.97 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
9.32 mm
Specifications D Max
9.28 mm
Specifications E Max
11.18 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications F 025
2.59 mm
Specifications Hole Size In Sheet 008
9.35 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
8.64 mm
Specifications Min Sheet Thickness
1 mm
Specifications Shank Code
1
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6H
Specifications Type
F10
Specifications T 025
4.85 mm
